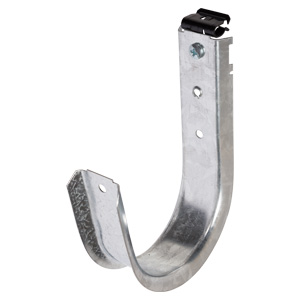

4″ J Hook with Hammer on Beam Clamp for 1/8″-1/4″ Flange
4″ J Hook, Hammer On Beam Clamp, 1/8″-1/4″ FlangeSub-Brand: WJH SeriesPart # WJH64HOK-24UPC: 811443030390
Cable management solutions for data centers, connected buildings and other commercial network cable pathway applications
- Pre-assembled with hammer on beam clamp
- Time saving and cost-effective alternative compared to using mesh cable basket or ladder tray
- Heavy duty pre-galvanized steel
- Smooth rounded edges for the proper bend radius of cables
- For category cable, low-voltage wire, coax, innerduct and flexible conduit & tubing
- Provides excellent support for CAT5e, CAT6, CAT6A, and fiber optic cables
- Bendable tab for securing wires
- UL & CUL listed
- Complies with NEC and TIA/EIA requirements for structured cabling systems
Application
Provides support in the distribution of:
-
- Wire & Cable
-
- Telcom/Voice Wire
- Network/Data/PoE Category Cable
- Optical Fiber Cable
- Low Voltage/Fire Alarm/Security Wire
- Audio/Video Cable
- Power and Control Tray Cable
- Sheathed & Metal-Clad Cable
-
- Coax
-
- Broadband
- Satellite
- CCTV
- Cell Signal Boosting
-
- Duct Systems
-
- Conduit
- Innerduct
- Tubing
-
- Wire & Cable
Installation
- Attaches to beam flange 1/8″ to 1/4″ thick using a hammer
Cable Capacity
- 370 Cat5e cables
- 230 Cat6 cables
- 150 Cat6A cables
- 125 Cat7 cables
- 300 Fiber optic cables
Specifications
- Overall Length (In.): 6.215
- Overall Width (In.): 2.001
- Overall Height (In.): 7.758
- Overall Weight (Lbs.): 0.473
- Material: Pre-galvanized steel
