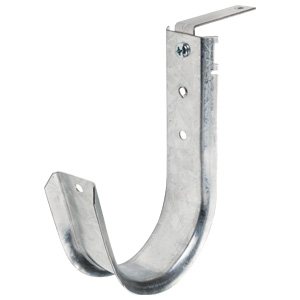

6″ J Hook with 90° Angle Clip, 1/4″ Hole, 3″ Offset
6″ J Hook, 90° Angle Clip, 3″ Offset
Sub-Brand: WJH Series
Part # WJH96AC4T-300
UPC: 811443038648
Cable management solution for data centers, connected buildings, commercial, & industrial non-continuous cable pathway applications
- Pre-assembled with 90° Angle Clip with 3″ offset for organizing and routing cables from ceiling
- Cost-effective alternative to cable tray or ladder rack systems
- Constructed from heavy-duty pre-galvanized steel for durability
- Supports flexible extension and obstacle avoidance from the mounting surface
- Smooth, rounded edges maintain proper cable bending radius
- Engineered for stress-free installation—saves time and labor
- Creates distribution pathway for category cable, PoE, low-voltage, coax, signal/control cable, and innerduct/tubing
- Provides excellent support for CAT3, CAT5e, CAT6, CAT6E, CAT6A and fiber optic cables
- Includes wire retainer clip for secure cable retention
- Compliant with NEC and TIA/EIA structured cabling standards
Application
- Secures, routes, and organizes:
- Telecom and voice wiring
- Network/data category cabling
- Low-voltage wire
- PoE cable
- Fire alarm system cable
- Access control cable
- Security and surveillance cable
- Audio/video cable
- Sheathed & metal-clad non-powered cable
- Signal and control tray cable
- Coaxial cable (TV, broadband)
- Flexible hose, tubing, and innerduct
- Typical Use Locations:
- Server rooms and data centers
- Commercial and office buildings
- Industrial facilities and manufacturing plants
- Warehouses and distribution centers
- Food and beverage processing environments
- Retail spaces and restaurants
- Hospitals and medical centers
- Schools, colleges, and educational campuses
- Energy and renewable infrastructure
- Theaters, concert venues, and event spaces
- Residential and multi-unit buildings
- Active construction sites
Installation
- Attaches to ceiling or overhead structure with mounting anchor (not included) or 1/4″ threaded rod
Cable Capacity
- 370 Cat5e cables
- 230 Cat6 cables
- 150 Cat6A cables
- 125 Cat7 cables
- 300 Fiber optic cables
Specifications
- Overall Length (In.): 7.5385
- Overall Width (In.): 2
- Overall Height (In.): 7.919
- Overall Weight (Lbs.): 0.51
- Material: Steel
- Finish: Pre-galvanized
Packaging
- Unit Packaging: 25
Safety
- All instructions must be strictly adhered to for a safe, accurate, and effective installation and performance
- Ensure compliance with all governing codes and regulations and those required by the job site
- Never utilize product beyond their intended purpose or in a way that exceeds specified load ratings
- Failure to properly install, use, or apply the product as instructed can result in malfunction, property damage, serious injury, or death, and will void the warranty
- Utilize with industry-standard hardware that meets specified requirements
