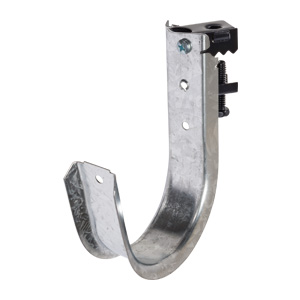

June 4, 20246″ J Hook with Spring Steel Beam Clamp Upside Down Mount
6″ J Hook, Spring Steel Beam Clamp, Upside Down Mount
Sub-Brand: WJH Series
Part # WJH96SSBCU
UPC: 811443034244
Cable management solution for data centers, connected buildings, commercial & industrial non-continuous cable pathway applications
- Features and Benefits
- Application
- Installation
- Cable Capacity
- Resources
- Packaging
- Specifications
- Safety
- Pre-assembled with Spring Steel Beam Clamp for organizing and routing cables from ceiling clamping to I-beam flange
- Upside down mounted beam clamp allows for effortless installation in tight spaces
- Cost-effective alternative compared to using cable tray or ladder rack
- Crafted from heavy-duty pre-galvanized steel
- Smooth rounded edges to provide proper bending radius
- Engineered to provide stress-free installation saving time and money
- Creates a distribution pathway for category cable, PoE, low-voltage, coax, signal & control cable, and innerduct & tubing
- Provides excellent support for CAT3, CAT5e, CAT6, CAT6E, CAT6A and fiber optic cables
- Supplied with an installed 1/4-20 x 1″ combination Philips/slotted hex head machine screw
- Serrated jaws deliver additional gripping power to tightly secure j hook to flange
- Includes wire cable retainer clip
- Complies with NEC and TIA/EIA requirements for structured cabling systems
Application
Designed for:
- Wire & Cable
- Telcom/Voice Wire
- Network/Structured Category Cable
- PoE Cable
- Optical Fiber Cable
- Low Voltage Wire
- Fire Alarm/Security Cable
- Access Control Cable
- Audio/Video Cable
- Power & Control Cable
- Signal Cable
- Sheathed & Metal-Clad Cable
- Coax
- Broadband
- Satellite
- CCTV
- Cell Signal Boosting
- Duct Systems
- Innerduct
- Tubing
Use in:
- Server Rooms and Data Centers
- Commercial and Office Buildings
- Industrial and Manufacturing
- Warehouses and Distribution Centers
- Food and Beverage
- Retail and Restaurants
- Hospitals and Medical Centers
- Schools and Colleges
- Energy and Renewables
- Mines and Oil Rigs
- Theaters and Concert Venues
- Residential and Multi-Unit Buildings
- Construction Sites
Installation
- Attaches to beam flange up to 1/2″ thick
- Secure with the included bolt using a socket driver or Philips head screwdriver
Cable Capacity
- 370 Cat5e cables
- 230 Cat6 cables
- 150 Cat6A cables
- 125 Cat7 cables
- 300 Fiber optic cables
Resources
Packaging
- Carton Qty: 25
Specifications
- Material: Steel
- Finish: Pre-galvanized
Safety
- All instructions must be strictly adhered to for a safe, accurate, and effective installation and performance
- Ensure compliance with all governing codes and regulations and those required by the job site
- Never utilize product beyond their intended purpose or in a way that exceeds specified load ratings
- Failure to properly install, use, or apply the product as instructed can result in malfunction, property damage, serious injury, or death, and will void the warranty
- Utilize with industry-standard hardware that meets specified requirements
