16lb Magnetic Cable Tie Manager for 0.19″ Tie, All Black

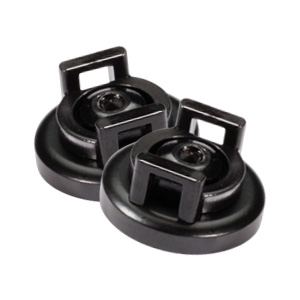

16 lb Magnetic Cable Tie Manager, 0.19″, All Black
Product Series: WinnieMAG
Part # WMAG16CTAB
UPC: 811443030970
Color: Black
Secure and route cables with an amazingly strong 16lb magnet to maximize space and maintain clean, controlled installs
- 16lb WinnieMAG Pot Magnet with cable tie manager for secure, organized cable routing
- Amazingly strong neodymium rare earth magnet secures firmly to vertical or horizontal ferromagnetic surfaces
- Steel cup focuses the magnetic field toward the fastening surface to increase pull force
- Vertical pull force of up to 16 lbs provides secure adhesion
- Black epoxy‑coated steel cup provides durability and corrosion resistance
- Sleek all‑black design aesthetically blends with dark backgrounds
- Low‑profile design provides strong grip in a compact footprint
- Permanent hold yet easily repositioned to accommodate changing layouts or mounting needs
- Quick, tool‑free installation saves time and labor on every setup
- No drilling or adhesives required, preventing damage to finished surfaces
- Dual‑slot cradle design supports and organizes cable bundles while preventing pinching or tangling
- Accepts standard cable ties up to 0.19″ (4.8 mm) wide for secure fastening
- UV‑resistant black material protects against fading, brittleness, and sun‑driven degradation
- Retains magnetic strength over service life for dependable, repeatable performance
- Maintains adhesion when exposed to oil, grease, dirt, and extreme temperatures
- Magnet will not interfere with Ethernet or Wi‑Fi signals
- Plenum‑rated copolymer plastic mount delivers long‑lasting durability
- Delivers consistent performance across demanding applications and environments
Application
Designed for:
- Secure, route, and organize wire, cable, cords, patch cords, and other cabling bundles
- Permanent and temporary cable management using cable ties
Use in:
- Cabinets, enclosures, network racks, and workstations
- Entertainment systems and conference rooms
- Digital signage and POS
- Utility vans, trailers, and work trucks
- I-Beams, metal framework and other metal structural elements
- Industrial machines and pumps
- Heavy equipment and agricultural machinery
- Material handling
- Assembly lines and conveyor systems
- Stages and overhead rigs
- Construction sites
- And much, much more
Installation
- Simply position the magnet onto desired ferromagnetic surfaces
- Insert cable tie, wrap the cable bundle, feed the tie tail through the locking mechanism, tighten, and trim excess
- Do not overtighten cable ties to avoid damaging cable jackets
- No drilling, adhesives, or specialized tools required
Specifications
- Magnet Size: 19mm x 4.5mm
- Magnet Mounting Hole: 5mm
- Magnet Grade: N45M
- Magnet Plating: NiCuNi
- Temperature Tolerance: -40°F – 212°F (-40°C – 100°C)
- Cup: White epoxy steel
- Overall Length (In.): 0.748
- Overall Width (In.): 0.748
- Overall Height (In.): 0.4545
- Overall Weight (Lbs.): 0.019
Packaging
- Unit Packaging: 100
- Carton Packaging: 10
Safety
- Handle neodymium magnets with care to prevent damage or injury
- Keep magnets away from individuals with pacemakers or other medical implants
- Magnets are not toys; store safely out of reach of children and pets
- Large, powerful magnets can pinch fingers or cause injury — use caution during handling
