Cable Mounting & Support Hardware Defined

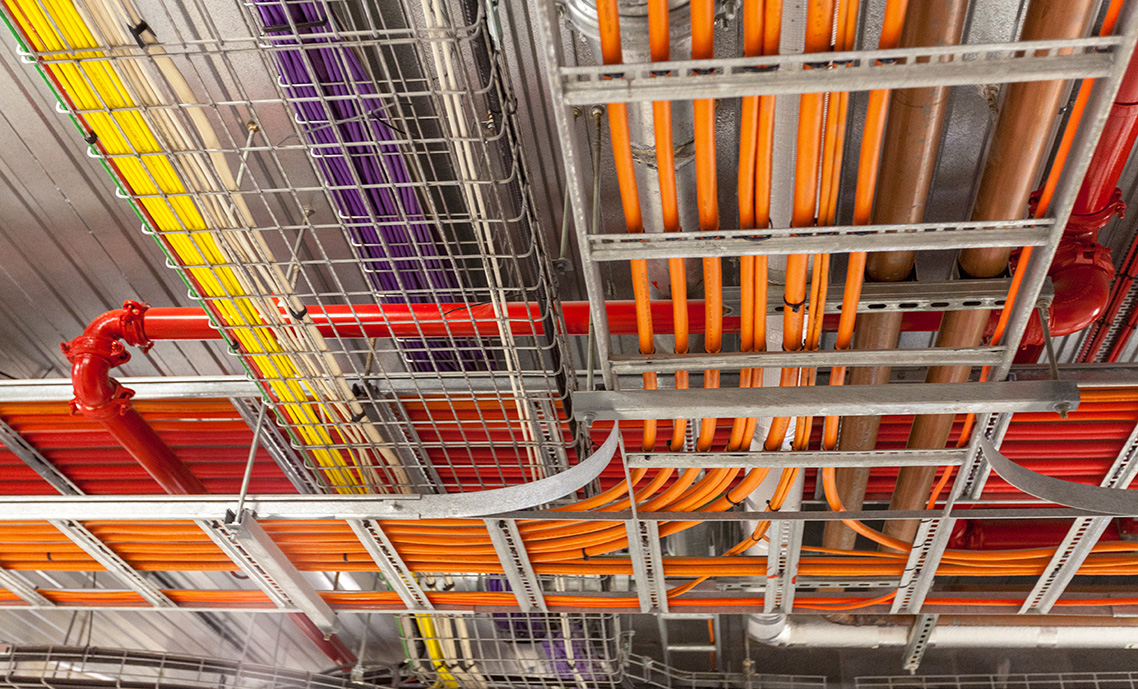

Cable Pathways & Routing Systems

1. Cable Tray: Rigid support system for routing large cable bundles horizontally or vertically. Includes solid, perforated, or wire mesh styles.
   • Straight Section: Main horizontal run of tray.
   • Splice Plate: Connects tray sections.
   • Tray Cover: Shields cables from dust or EMI.
   • Drop-Out: Guides cables out while preserving bend radius.
   • Waterfall: Curved accessory for smooth cable transition to vertical drop or patch panel.
   • Radius Elbow: Enables directional changes.
   • Tee & Cross Fittings: Junction points for branching.
   • Hold-Down Clamp: Secures tray to framing.
   • Expansion Joint: Allows thermal movement.
   • Barrier Strip: Segregates cable types within tray.
2. Wire Basket Tray: Mesh-style tray for airflow and accessibility in structured cabling and low-voltage installs.
   • Tray Section: Main mesh pathway.
   • Splice Kit: Connects tray sections.
   • Drop-Out: Cable exit with bend radius control.
   • Waterfall: Curved insert guiding cables to equipment or vertical drop.
   • Radius Elbow: Horizontal or vertical turns.
   • Tee & Cross Fittings: Branching points.
   • Mounting Bracket: Secures tray to surfaces.
   • Divider Strip: Separates cable types.
   • Tray Cover: Optional lid for protection.
3. Raceway: Enclosed channel for surface-mounted cable runs in office or retrofit installs.
   • Raceway Section: Plastic or metal channel.
   • Elbow Fitting: 90° directional change.
   • Tee Fitting: Three-way junction.
   • Coupler: Connects raceway sections.
   • End Cap: Seals open ends.
   • Reducer: Transitions between sizes.
   • Outlet Box Adapter: Interfaces with devices.
   • Mounting Clip: Secures raceway to surfaces.
4. Conduit: Tubular protection for electrical wiring using EMT, PVC, or flexible types.
   • Conduit Section: Straight run of tubing.
   • Coupling: Connects conduit sections.
   • Elbow: Enables directional change.
   • Conduit Strap: Secures conduit to framing.
   • Expansion Fitting: Allows movement due to temperature.
   • Conduit Body (LB, T, C): Access point for pulling or splicing.
   • Bushing: Protects wire edges at entry points.
   • Connector: Interfaces conduit with boxes or enclosures.
5. Cable Ladder Rack: Rigid frame with side rails and rungs for supporting heavy cable bundles.
   • Rack Section: Main structural component.
   • Radius Drop-Out: Guides cables off rack with bend radius control.
   • Waterfall: Curved accessory for smooth cable transition to vertical drop or patch panel.
   • Wall Bracket: Anchors rack to wall.
   • Ceiling Hanger Kit: Suspends rack overhead.
   • Splice Kit: Connects rack sections.
   • Support Post: Mid-span structural support.
   • End Cap: Covers open ends for safety.
   • Retainer Clip: Secures cables along rungs.
6. Fiber Duct System: Modular enclosed pathway for routing fiber optic cables in high-density environments.
   • Fiber Channel: Main trough for fiber bundles.
   • Snap-On Cover: Shields fiber from dust and damage.
   • Vertical Drop: Guides fiber downward to equipment.
   • Horizontal Elbow: Enables 90° directional changes.
   • Tee & Cross Fittings: Branching points.
   • Support Bracket: Mounts duct to surfaces.
   • End Cap: Seals open ends.
   • Radius Insert: Maintains bend radius for fiber.

Strut Channel & Accessories

1. Strut Channel: Steel framing system used to mount conduit, cable tray, ladder rack, and support hardware. Available in slotted, solid, and back-to-back profiles. Used in electrical, mechanical, and low-voltage installs.
2. Strut Nut: Spring-loaded or standard nut that locks into strut channel to secure threaded rod, clamps, or brackets. Essential for modular mounting.
3. Strut Bracket: Angle, U-shaped, or flat bracket used to mount hardware to strut framing. Often pre-drilled for fast install and load-rated for structural support.
4. Strut End Cap: Plastic or metal cap that covers open ends of strut channel for safety, finish, and debris protection.
5. Strut Clamp Adapter: Interface fitting that allows conduit clamps, J-hooks, or other hardware to mount directly to strut channel.
6. Strut Hanger Plate: Flat plate used to suspend strut channel from ceilings or beams using threaded rod or anchors.
7. Strut Trolley: Sliding mount that rides inside strut channel for movable cable support or tool-free adjustment.
8. Strut Coupler: Connector used to join two strut sections end-to-end for extended runs or framing continuity.

Threaded Rod & Rod Hardware

1. Threaded Rod: Steel rod used to suspend cable tray, conduit, or ladder rack from ceilings or beams. Available in multiple diameters and lengths.
2. Rod Coupler: Connector that joins two threaded rods for extended reach.
3. Rod Stiffener: Reinforcement sleeve or bracket that prevents rod flexing under heavy load.

Hanging & Support Hardware

1. J Hook: Versatile cable support shaped like a “J,” used for routing low-voltage, fiber, coax, and bundled cables. Available in multiple sizes and mounting styles for ceilings, walls, strut, or threaded rod.
2. Bridle Ring: Circular loop for light-duty cable support in telecom and low-voltage installs.
3. Cable Hanger: General suspension device for bundled cable runs.
4. Drop Wire Support: Secures vertical cable drops from ceiling or framing.
5. D-Ring: aka distribution ring or telco ring. Flat-backed, D-shaped cable guide mounted to walls, racks, or enclosures. Available in plastic or metal.

Fasteners & Anchors

1. Cable Tie (Zip Tie): Strap for bundling cables; available in nylon or Velcro.
2. Saddle Tie Mount: Anchors cable ties to surfaces.
3. Cable Clip: Secures individual cables to framing or panels.
4. Cable Staple: Fastens cable directly to wood framing.
5. Anchor Strap: Wrap-around strap for securing large bundles.
6. Drive Ring: Open loop fastener hammered into wood or masonry for light-duty cable support.
7. Multifunction Clip: aka Batwing. Spring steel clip that snaps into ceiling grid or structural steel. Used to mount j hooks, bridle rings, or threaded rod without tools.
8. Pedestal Mount: Base-mounted bracket for securing j hooks or cable supports to raised floor pedestals or vertical surfaces.
9. Angle Clip: L-shaped bracket used to mount cable hardware to beams, strut, or wall surfaces. Often pre-drilled for fast install.

Clamps

1. Conduit Clamp: Secures EMT, PVC, or flexible conduit to surfaces; cushioned or rigid styles.
2. Pipe Clamp: Heavy-duty clamp for large conduit or pipe runs.
3. Saddle Clamp: U-shaped bracket for conduit or pipe; bolt-on or strut-mounted.
4. Hammer-On Clamp: Impact-mounted clamp for steel beams; no drilling required.
5. Spring Steel Clamp: Snap-in clamp for conduit, pipe, or cable supports; tool-free and vibration-resistant.
6. Malleable Clamp: Cast steel clamp with threaded holes for mounting J-hooks, rings, or rod to beams.
7. Beam Clamp: Anchors to structural beams to support threaded rod, conduit hangers, cable tray brackets, or strut assemblies. Available in standard, swivel, and multi-thread configurations. Used when drilling is not permitted or practical.
8. Strut Clamp: Grips conduit or bundles inside strut channel; used in modular framing systems.
9. Cable Clamp: General-purpose clamp for securing cable bundles to framing, panels, or enclosures.
10. Loop Clamp (P-Clamp): Single-hole loop clamp for small bundles, tubing, or wire; available in metal or cushioned styles.
11. Snap-In Clamp: Press-fit clamp for modular or prefab installs; ideal for tool-free cable routing.
12. Cushioned Clamp: Lined with elastomer to dampen vibration and protect cable jackets.
13. Insulation Clamp: Secures insulated pipe or tubing without compression; maintains thermal integrity.
14. Hydraulic Clamp: Cushioned clamp for hydraulic or fluid lines near cabling systems; prevents abrasion and vibration transfer.

Magnetic & Tool-Free Solutions

1. Magnetic Cable Manager: Clip or bracket with magnetic base for organizing cable bundles on steel surfaces. Ideal for temporary routing, service loops, or retrofit installs where drilling isn’t permitted.
2. Magnetic J Hook: J Hook with integrated magnet for fast, tool-free mounting to steel beams, panels, or enclosures. Used in datacom and low-voltage installs.
3. Magnetic Bridle Ring: Bridle ring with magnetic base for light-duty cable support on steel framing or ceiling grid. Allows repositioning without tools.
4. Magnetic Clamp: Clamp with magnetic base for securing conduit, pipe, duct, hoses, or cable bundles to steel surfaces. Used in temporary setups or environments requiring non-invasive mounting.

Cable Routing Aids

1. Bend Radius Insert: Curved guide that maintains proper bend radius for fiber or copper cables at drop-outs or transitions.
2. Cable Guide Ring: Open ring or loop that directs cable around corners or through tight spaces without abrasion.
3. Service Loop Organizer: Bracket or tray that holds excess cable length in a clean, accessible loop for future maintenance.
4. Cable Spool: Rotating or fixed drum used to manage long cable runs or slack storage in telecom closets or data centers.
