Limited Energy Cable Fundamentals

Cable Basics

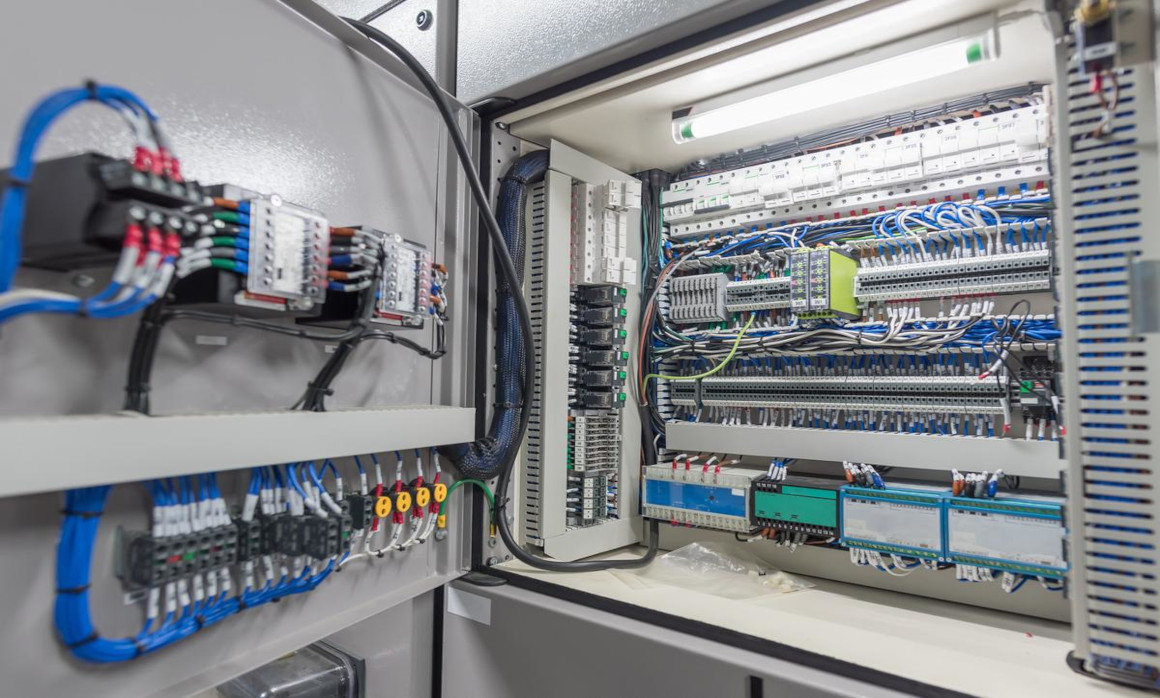

1. What is limited energy cable?

Limited energy cable—formerly referred to as low voltage cable—is designed to carry 50 volts or less. These cables support communication, control, and signaling systems such as data networks, security devices, audio/video systems, and building automation. They are easier to route, safer to handle, and governed by different NEC requirements than line voltage wiring.

2. What voltage levels are considered limited energy?

Limited energy circuits typically operate at 50 volts or less. Common examples include:

• 12V DC (used in LED lighting, sensors, and automotive systems)
• 24V DC (used in thermostats, control panels, and building automation)
• 48V DC (used in telecom systems and PoE applications)

These voltage levels are ideal for control signals, data transmission, and low power devices where safety and flexibility are essential.

3. What’s the difference between low voltage (LV) and limited energy (LE) cable?

“Low voltage” is the traditional industry term for circuits operating at 50 volts or less. The NEC 2026 now uses the term “limited energy” to classify these same circuits. LE is the code‑correct designation, while LV remains common in the field. Both refer to communication, control, and signaling cables—not power wiring.

4. What’s the difference between limited energy and line voltage cable?

Line voltage cable carries standard electrical power—typically 120V or 240V—and is used for outlets, lighting circuits, and appliances. Limited energy cable carries 50V or less and supports communication, control, and signaling systems. It is lighter, more flexible, and subject to different installation rules and safety requirements.

5. Is limited energy cable safer to install?

Yes. Limited energy cable carries significantly less electrical energy, reducing the risk of shock or fire during installation. It is commonly used in systems where safety, flexibility, and ease of routing are critical. However, proper handling, support spacing, and code compliance remain essential.

6. Does limited energy cable require conduit?

It depends on the environment and local code. In exposed or high traffic areas, conduit may be required to protect the cable from physical damage. In plenum spaces, cables must be plenum rated or installed in approved raceways. Always verify NEC requirements and consult the Authority Having Jurisdiction (AHJ) for local interpretations.

7. What do CL2, CL3, and CMP mean?

These are NEC defined fire and safety ratings for communication and control cables:

• CL2: Class 2 cable rated for general purpose use
• CL3: Class 3 cable rated for higher voltage (up to 300V)
• CMP: Plenum rated cable designed for use in air handling spaces

Selecting the correct rating ensures compliance with fire codes and protects building occupants.

Cable Types & Applications

1. What types of limited energy cable are available?

Limited energy cables come in a wide range of specialized types designed to support different signals, environments, and system requirements. Common varieties include:

• Ethernet twisted pair cables (CAT5e, CAT6, CAT6A, CAT7) for data networks and Power over Ethernet (PoE) applications
• Coaxial cable (used for TV, internet, video signals, and radio equipment)
• Fiber optic cable for high speed and long distance data transmission
• Security cable designed for surveillance cameras, intrusion detection, and general security systems
• Access control cable specifically designed for electronic door locks, card readers, and related hardware
• Fire alarm cable engineered to meet stringent fire safety standards and maintain circuit integrity during emergencies
• Multi conductor cable often used for serial data transmission, especially in RS‑232, RS‑485, and RS‑422 protocols
• Speaker wire for audio distribution
• Thermostat wire for HVAC controls
• Nurse call cable designed to connect patient call stations, nurse consoles, and alerting systems in healthcare facilities
• Control cables for building automation and industrial systems
• Intercom cable used for voice communication systems in buildings
• Lighting control cable (e.g., DALI, DMX) for digital lighting protocols in architectural and theatrical systems
• Doorbell wire
• Landscape lighting wire
• Irrigation wire for outdoor controller circuits
• Tracer wire used to locate underground non metallic pipes and conduit
• Loop detector cable for vehicle detection loops in gates, driveways, and parking systems
• Elevator traveling cable designed to move with elevator cars while carrying control and communication signals
• Instrumentation cable for precise sensor and measurement signals
• Thermocouple extension cable used to carry temperature signals from thermocouples to controllers in industrial settings

Together, these cover the vast majority of residential, commercial, healthcare, industrial, and specialized limited energy wiring needs.

2. What is limited energy cable used for?

Limited energy cable powers and connects a wide range of essential systems across residential, commercial, healthcare, and industrial environments. Typical applications include:

• Paging and intercom systems
• Smart home automation
• Limited energy lighting and control
• Surveillance and access control
• Home theater and AV setups
• Garage doors and gate operators
• Thermostats and HVAC controls
• Landscape lighting and irrigation
• LED lighting and signage
• Facility management and building automation
• Nurse call and patient alert systems in healthcare environments
• Vehicle detection loops and gate control systems
• Underground utility tracing and pipe location
• Elevator control and communication circuits
• Industrial sensor and instrumentation wiring

These use cases highlight the versatility of limited energy cable across multiple trades.

3. What cable types are used for audiovisual and home theater systems?

AV and home theater setups rely on several cable types:

• Speaker wire (typically 16–12 AWG for audio distribution)
• HDMI cables (for high definition video and audio)
• Coaxial cable (for TV signal, RF distribution, and radio equipment)
• Ethernet (for streaming, control, and smart integration)
• Control cables (for lighting, shades, and automation interfaces)

Together, these cables support high quality AV performance and smart system control.

4. What are the requirements for limited energy lighting control systems?

Lighting control systems must follow specific wiring and safety standards to ensure performance and code compliance. They typically require Class 2 wiring rated for 24 volts or less, which limits power and reduces risk. Shielded cables are often necessary to protect sensitive dimming circuits or control signals from electromagnetic interference. Installations must comply with the National Electrical Code’s Article 411, which governs lighting systems powered by Class 2 sources. Compatibility with drivers, transformers, and control modules is essential for proper function and long term reliability.

5. How does limited energy cabling integrate with building automation systems?

Effective integration of limited energy cabling within building automation depends on proper cabling practices and protocol compatibility. These cables connect sensors, controllers, relays, and actuators, forming the communication backbone for centralized monitoring and control. Supporting industry standard protocols such as BACnet, Modbus, and KNX ensures interoperability. Clear labeling, proper shielding, and physical separation from line voltage wiring help maintain signal integrity. Routing cables through structured pathways or dedicated raceways enhances organization and protects them from mechanical damage.

6. Do I need shielded cable?

Shielded cable is recommended in environments where electromagnetic interference (EMI) may affect signal quality. Operating near motors, ballasts, or fluorescent lighting increases the risk of interference, making shielding essential for data integrity. Shielded cables are also beneficial for long distance or sensitive signal runs. While shielded cable can be more expensive and less flexible, its reliability advantages often justify the investment in electrically noisy or mission critical installations.

7. What are the benefits of limited energy cable?

Limited energy cable offers multiple advantages for modern electrical and communication systems. It is safer to handle and install due to lower voltage and current levels. Its energy efficiency supports sustainable building practices and reduces operating costs. Flexible routing and easy termination simplify installation and retrofit work. Limited energy cable also reduces electromagnetic interference, helping maintain clean, reliable signals for smart systems, automation, and advanced control applications. These benefits make it a preferred choice for scalable, future ready infrastructure.

8. What are the common installation methods for limited energy cable?

Limited energy cable can be installed using several methods depending on the environment, code requirements, and system design. Common approaches include:

• Open air support using j hooks, cable rings, or cable trays
• Raceways such as EMT, ENT, PVC, or surface mounted channels
• Plenum rated cable installed in air handling spaces
• Conduit sleeves for transitions through walls, ceilings, or fire rated assemblies
• Structured cabling pathways for organized, scalable installations

The chosen method must comply with NEC requirements and local AHJ interpretations to ensure safety and performance.

Installation & Routing

1. What are best practices for routing limited energy cable?

Limited energy cable should be routed away from line voltage wiring to prevent interference. Use dedicated pathways, raceways, or cable trays when possible. Avoid sharp bends, excessive tension, and exposure to heat sources. Maintain clear labeling and separation between signal types to simplify troubleshooting and future upgrades.

2. Is it acceptable to bundle limited energy cables together?

Yes, but only when cables carry similar signals and voltages. Mixing power and data lines can cause interference. Shielded cables help reduce crosstalk in bundled runs. Always follow manufacturer guidelines and local code to avoid overheating or signal degradation.

3. What are recommended practices for labeling limited energy cables?

Use durable, legible labels at both ends of each cable. Include system type, destination, and circuit ID. Color coded jackets or printed sleeves can help distinguish signal types. Clear labeling speeds up installation, testing, and future maintenance—especially in complex systems or shared pathways.

4. What are the requirements for running limited energy cable outdoors or underground?

Outdoor runs require UV resistant jackets; underground runs need direct burial rated cable or conduit protection. Moisture, temperature, and physical damage are key concerns. Always verify cable ratings and follow NEC Article 725 and local code for outdoor and underground installations.

Code & Compliance

1. Which codes govern limited energy cable installations?

Limited energy installations are governed by the National Electrical Code (NEC), especially Articles 725, 760, and 770. These cover power limited circuits, fire alarm systems, and fiber optic cable. Local building codes may add further requirements, so it’s critical to check both national and local regulations before starting a job.

2. When must limited energy cables be plenum rated?

Plenum rated cable is required when installed in plenum spaces—areas used for air circulation such as return air ceilings or HVAC shafts. In these locations, cables must meet strict fire safety standards and carry a CMP (plenum rated) designation. Using non plenum cable in these areas is a code violation and a significant fire risk.

3. How do riser rated and plenum rated cables differ?

Riser rated cable (CMR) is designed for vertical shafts between floors, such as risers, elevator shafts, or conduit runs. Plenum rated cable (CMP) meets stricter fire and smoke standards and is approved for air handling spaces. CMP can be used in riser applications, but CMR cannot be used in plenum spaces.

4. Is a permit required to install limited energy cable?

Permit requirements vary by jurisdiction. Some areas allow limited energy work without a permit, especially for residential or small scope projects. Others require permits and inspections for any electrical work, including data, security, and communication wiring. Always check with the local authority having jurisdiction (AHJ) before beginning an installation.

Signal Integrity & Performance

1. What affects signal quality in limited energy cable?

Signal quality can be impacted by electromagnetic interference (EMI), cable length, improper termination, and proximity to line voltage wiring. Poor shielding or routing near motors, ballasts, or fluorescent lighting can degrade performance. Using the correct cable type and maintaining proper separation helps preserve signal integrity.

2. What are typical distance limits for different limited energy signals?

Distance limits depend on the signal type and cable used. Ethernet typically runs up to 100 meters (328 feet) per segment. Speaker wire, control signals, and analog video may degrade over longer distances. Using repeaters, amplifiers, or higher grade cable can extend range while maintaining performance.

3. What is crosstalk and how can it be prevented?

Crosstalk is unwanted signal interference between adjacent cables or conductors. It is common in bundled runs or poorly shielded installations. To prevent it, use twisted pair or shielded cable, maintain separation between signal types, and avoid tight bundling of incompatible circuits.

4. Is post installation testing required for limited energy cable?

Yes. Testing ensures continuity, signal strength, and proper termination. For data cable, use a certifier or cable tester to verify performance. For control and AV systems, confirm signal delivery and device response. Testing catches issues early and prevents costly troubleshooting later.

Cable Ratings & Identification

1. How do CL2 and CL3 cable ratings relate to voltage and application requirements?

CL2 and CL3 are NEC classifications for Class 2 and Class 3 circuits. CL2 cable is rated for up to 150 volts, while CL3 is rated for up to 300 volts. Both are used for limited energy applications such as security, audio, and control systems. CL3 offers higher voltage tolerance and may be required in certain commercial installations.

2. How can I identify shielded vs unshielded cable?

Shielded cable includes a metallic foil or braid around the conductors to block interference. It is often labeled as STP (shielded twisted pair) or shown with a visible shield layer in cross section. Unshielded cable (UTP) lacks this layer and is more flexible but less resistant to EMI. Always check the jacket markings and manufacturer specifications.

3. What does “direct burial” mean on a cable label?

“Direct burial” means the cable is rated to be installed underground without conduit. It has a rugged, moisture resistant jacket designed to withstand soil contact, temperature changes, and physical stress. Not all outdoor rated cable is burial rated—always check the label and specifications before installation.

4. Are there color standards for limited energy cable jackets?

There is no universal code, but common practices exist. Red often indicates power or fire alarm; blue is used for data; yellow for video; and green for security. These conventions help with identification and troubleshooting but may vary by manufacturer or region. Always verify with project specifications and labeling.

Safety & Fire Rating

1. What qualifies a cable as fire rated?

Fire rated cable is designed to resist ignition and limit flame spread. It meets specific fire safety standards, such as UL 1666 or NFPA 262, depending on the application. These cables are often required in plenum spaces, risers, or critical systems like fire alarms and emergency circuits.

2. How can limited energy cable contribute to fire hazards?

Improper installation, overloading, or using non rated cable in plenum or riser spaces can increase fire risk. Limited energy does not mean zero hazard—damaged jackets, poor shielding, or bundled heat buildup can all contribute. Always match cable ratings to the environment and follow code requirements.

3. What’s the difference between CMP, CMR, and CM cable ratings?

CMP (plenum) is the highest fire rated cable, approved for air handling spaces. CMR (riser) is rated for vertical shafts between floors. CM (general purpose) is for standard non critical areas. CMP can substitute for CMR or CM, but not vice versa. Each rating reflects the cable’s flame resistance and approved installation zones.

4. Do schools, hospitals, or public buildings have special fire codes?

Yes. These facilities often require stricter fire ratings, enhanced cable separation, and more rigorous inspection. CMP cable is commonly mandated in shared air spaces. Local code may also require fire retardant pathways, labeling, and documentation. Always verify with the authority having jurisdiction (AHJ).

Installation Best Practices

1. What’s the proper way to support limited energy cable runs?

Cables should be supported at regular intervals using j hooks, cable trays, or other approved methods. Avoid sharp bends, kinks, or stress points. Never use staples or fasteners that pinch the cable jacket. Support spacing is typically every 4 to 5 feet, but always follow manufacturer guidelines and local code.

2. How should limited energy cable be run in relation to line voltage wiring?

Proper separation is essential to prevent interference and meet NEC requirements. Use physical barriers, separate conduits, or dedicated pathways to maintain safety and signal integrity. Avoid running cables bundled together without separation to prevent code violations and performance issues.

3. How should cable be labeled during installation?

Use clear, durable labels at endpoints, junctions, and panels. Include circuit ID, destination, and signal type when applicable. Labeling helps with troubleshooting, future upgrades, and code compliance. Avoid handwritten tags that fade or fall off—use printed labels or heat shrink markers.

4. Which common mistakes should be avoided during limited energy cable installation?

Avoid over tightening cable ties, skipping support hardware, or bundling incompatible signal types. Don’t exceed bend radius or pull tension limits. Never leave exposed cable in plenum spaces without proper rating. Poor planning and rushed installs lead to signal issues and failed inspections.
