Guide for Effective Cable Pulling

1. Understand the System Architecture

Cable pulling isn’t just about threading wire—it’s about aligning with a structured cabling system that defines backbone, horizontal, and work area segments. Without a clear understanding of the architecture, installers risk misrouting cables, violating standards, and triggering costly rework or inspection failures.

Best Practices

• Identify backbone, horizontal, or work area segments
• Confirm termination points and service zones
• Review floor plans and ceiling layouts
• Verify plenum zones and conduit access
• Cross-check against TIA/EIA-568 and NEC

Failure Modes

• Misrouted cable requiring re-pull
• Ceiling tile violations
• Unsupported spans across zones

2. Select Cable Types Based on Application and Environment

Cable type directly impacts bandwidth, EMI resistance, fire safety, and long-term scalability. Selecting the wrong cable for the application or environment can compromise network performance, violate code, and require a full re-pull—especially in high-EMI or plenum-rated zones.

Best Practices

• Use Cat5e/Cat6/Cat6A for Ethernet
• Use fiber optic for backbone or long runs
• Use coaxial for broadband/RF
• Use plenum-rated cable in air-handling spaces
• Use STP in high-EMI environments

Failure Modes

• Signal degradation from EMI
• Fire code violations
• Re-pull due to bandwidth mismatch

3. Anchor the Pull in Standards and Compliance

Every cable pull must be grounded in national and industry standards. These define critical parameters—support spacing, bend radius, conduit fill, and routing protocols. Ignoring them invites inspection failure, signal degradation, and legal liability.

Best Practices

• Follow TIA/EIA-568, ISO/IEC 11801, ANSI/TIA-942
• Follow NEC for fire safety and routing
• Follow BICSI for bend radius and force limits
• Document compliance checkpoints

Failure Modes

• Inspection failure due to routing violations
• Signal loss from excessive bend
• Legal liability from non-compliant pathways

4. Plan the Pull: Geometry, Fill, and Environment

Successful pulls begin with geometry and fill calculations. Conduit layout, junctions, cable weight, and environmental constraints must be mapped before cable enters the pathway. Poor planning leads to friction, deformation, and stalled pulls.

Best Practices

• Map conduit geometry and junctions
• Calculate fill ratios per NEC
• Account for cable weight and tension
• Identify plenum zones and obstructions
• Verify firestop requirements

Failure Modes

• Stalled pull due to overfill
• Jacket damage from tight bends
• Safety violations from unplanned access

5. Select Proper Tools and Equipment

The right tools make the difference between a clean pull and a damaged cable. Route complexity, conduit type, and cable characteristics dictate tool selection. Improvisation leads to abrasion, stalled pulls, and failed terminations.

Best Practices

• Use fish tape, pull strings, conduit mice
• Use mechanical or vacuum-assisted pullers
• Apply wire-pulling lubricant
• Equip with cutters, strippers, punch-down tools
• Use cable testers and labeling tools

Failure Modes

• Jacket abrasion from dry pulls
• Stalled pulls due to improper tools
• Post-pull confusion from unlabeled cables

6. Respect Bend Radius and Cable Handling Limits

Bend radius violations and excessive force silently degrade signal quality. Each cable type has handling limits that must be respected during routing, pulling, and support. Hidden damage from poor technique often escapes detection until performance suffers.

Best Practices

• Follow bend radius specs for each cable type
• Avoid sharp turns and forced bends
• Use guides or rollers around corners
• Maintain bend discipline with structured supports

Failure Modes

• Intermittent signal loss
• Physical damage requiring re-pull
• Failed inspection due to deformation

7. Use Lubricant and Pulling Force Discipline

Friction and uncontrolled tension are silent killers in cable pulls. Lubricant reduces stress on jackets, while disciplined force prevents stretching, separation, and long-term signal loss. Jerking or over-acceleration can destroy a cable without visible damage.

Best Practices

• Apply cable-safe lubricant at entry points
• Monitor pulling tension—manual or powered
• Use pulling grips or mesh socks
• Avoid jerking or over-acceleration

Failure Modes

• Jacket tearing or wire separation
• Signal degradation from stretching
• Residue contamination at terminations

8. Avoid Drop Ceiling Routing—Use Structured Supports

Ceiling tile routing violates NEC and invites fire risk, access issues, and inspection failure. Structured supports are the only compliant path for horizontal runs.

Best Practices

• Use J Hooks, trays, or conduits for horizontal runs
• Maintain support spacing per NEC (typically every 4–5 feet)
• Use plenum-rated supports in air-handling zones
• Avoid routing near HVAC, sprinkler, or lighting systems

Failure Modes

• Code violations and failed inspection
• Fire risk from unsupported cable in plenum zones
• Sagging, tangled, or inaccessible cable runs

9. Maintain Separation and EMI Mitigation

EMI from power lines, lighting, or motors can cripple signal quality. Maintaining separation, using shielded cable, and documenting EMI zones are essential in mixed-use environments to prevent crosstalk and certification failures.

Best Practices

• Maintain 12-inch minimum separation between data and power cables
• Use shielded twisted pair (STP) in high-EMI zones
• Avoid parallel runs with high-voltage lines
• Use metal cable trays or grounded conduits for added shielding
• Document EMI zones and mitigation strategies

Failure Modes

• Crosstalk, signal loss, or intermittent connectivity
• Failed certification tests
• Re-pull required due to interference

10. Bundle Smart—Hook & Loop, Never Zip Ties

Bundling isn’t just about neatness—it’s about preserving cable geometry and airflow. Zip ties compress jackets, trap heat, and distort signal paths. Hook & loop straps offer adjustable, non-compressive bundling that supports performance and scalability.

Best Practices

• Use hook & loop straps for bundling—adjustable, non-compressive
• Maintain spacing between bundles to allow airflow
• Avoid over-tightening or stacking bundles
• Bundle by destination or service type
• Label bundles clearly and consistently

Failure Modes

• Jacket deformation and signal degradation
• Heat buildup in dense bundles
• Confusion during troubleshooting or expansion

11. Label Both Ends Immediately

Unlabeled cables derail terminations, troubleshooting, and audits. Labeling is operational discipline—not a post-pull afterthought.

Best Practices

• Label both ends of every cable immediately after pull
• Use adhesive labels, heat-shrink tubing, or printed sleeves
• Apply color codes for service type
• Include circuit ID, destination, and date
• Update labels during moves, adds, or changes

Failure Modes

• Misidentification during termination
• Extended downtime during troubleshooting
• Failed documentation audits

12. Organize Post-Pull Routing with Trays and Panels

Post-pull chaos undermines even perfect pulls. Organized routing protects airflow, accessibility, and future scalability.

Best Practices

• Route cables through J Hooks, trays, and conduits with proper spacing
• Use rack-mounted cable managers for patch panels
• Maintain service separation (data vs power)
• Avoid overstuffing trays or racks
• Secure loose cables to prevent snagging or disconnection

Failure Modes

• Heat buildup from poor airflow
• Tangled cables during MACs
• Physical damage from unsecured routing

13. Terminate Cleanly and Verify Signal Integrity

Termination is where signal meets hardware. Sloppy terminations cause intermittent faults, failed certifications, and costly callbacks. Clean cuts, correct pinouts, and verification tools are non-negotiable.

Best Practices

• Use punch-down tools or certified connectors
• Follow T568A or T568B pinout standards
• Trim conductors cleanly—no exposed copper
• Use cable testers to verify continuity and performance
• Document test results for certification

Failure Modes

• Intermittent faults from loose terminations
• Failed certification due to incorrect pinout
• Callbacks and rework from signal loss

14. Document the Pull: Diagrams, Labels, and Test Results

Documentation isn’t paperwork—it’s operational memory. Diagrams, labels, and test results ensure traceability, support MACs, and satisfy audits. Without it, every future change becomes a guessing game.

Best Practices

• Create pull diagrams with routing and termination points
• Log cable IDs, service types, and destinations
• Include test results and certification data
• Store documentation in shared repository
• Update records during MACs

Failure Modes

• Failed inspection or audit
• Extended downtime during troubleshooting
• Duplicate or misrouted cables during expansion

15. Troubleshoot with Physical and Logical Discipline

Troubleshooting starts with physical inspection and ends with logical tracing. Signal loss, EMI, and mislabeling are common culprits. A disciplined approach prevents wasted time and unnecessary re-pulls.

Best Practices

• Inspect for jacket damage, bend violations, and EMI exposure
• Verify labeling and routing against documentation
• Use testers to isolate faults
• Check patch panel and switch port assignments
• Document findings and resolutions

Failure Modes

• Extended downtime from trial-and-error
• Missed faults due to poor inspection
• Re-pull due to undiagnosed physical damage

16. Coordinate with Other Trades and Site Schedules

Cable pulling doesn’t happen in a vacuum. Coordination with electricians, HVAC, ceiling installers, and site managers prevents conflict, damage, and delays. Communication is as critical as technique.

Best Practices

• Confirm pull schedule with site manager
• Coordinate with electricians and ceiling crews
• Avoid active HVAC or sprinkler zones
• Use signage or barriers to protect active pulls
• Document site constraints and access windows

Failure Modes

• Cable damage from other trades
• Delays due to blocked access
• Re-routing required due to ceiling conflicts

17. Build for Scalability and Future MACs

Today’s pull must support tomorrow’s changes. Scalability means slack, modular routing, and labeling logic that survives expansion. Without it, every MAC becomes a teardown.

Best Practices

• Leave service loops at termination points
• Use modular trays and structured supports
• Label with future MACs in mind
• Document spare capacity and routing logic
• Avoid overstuffing trays or conduits

Failure Modes

• Re-pull required for every MAC
• Confusion from unlabeled or undocumented slack
• Overloaded trays or conduits during expansion

18. Final Inspection and Sign-Off

Every pull ends with inspection. Visual checks, documentation review, and signal verification ensure the job meets standards and survives scrutiny. Sign-off isn’t a formality—it’s a final defense against callbacks.

Best Practices

• Perform visual inspection of all routing and supports
• Verify labeling and documentation completeness
• Confirm test results and certification
• Review with AHJ or site manager
• Log sign-off and archive records

Failure Modes

• Failed inspection due to missing documentation
• Signal faults missed during final test
• Delayed occupancy or activation

19. Glossary of Terms

Common terms used throughout this guide—defined for clarity and field reference.

• AHJ
  Authority Having Jurisdiction—typically the local inspector or code official who enforces compliance.
• ANSI/TIA-568
  Defines cabling types, distances, connectors, and performance requirements for structured cabling systems.
• ANSI/TIA-569
  Telecommunications standard for pathways and spaces, including J Hook spacing and support requirements.
• ANSI/TIA-942
  Standard for telecommunications infrastructure in data centers, covering cabling, pathways, and environmental controls.
• Backbone Cabling
  High-capacity cabling that connects entrance facilities, equipment rooms, and telecommunications rooms—often fiber or coaxial.
• Bend Radius
  The minimum radius a cable can be bent without causing damage or signal degradation; varies by cable type and must follow standards.
• BICSI
  Professional association that sets best practices for cabling installation, including bend radius, pulling force, and pathway design.
• Bundle
  A group of cables routed together. Must be managed to avoid compression, heat buildup, and signal interference.
• Cat5e / Cat6 / Cat6A / Cat7
  Categories of twisted-pair Ethernet cable with increasing bandwidth and shielding. Cat6A and above support higher speeds and PoE.
• Ceiling Tile Violation
  A code violation where cable is laid directly on ceiling tiles, risking fire hazards and inspection failure.
• Circuit ID
  A unique identifier assigned to a cable run, used for labeling, documentation, and troubleshooting.
• Conduit Fill Ratio
  The percentage of conduit space occupied by cable. Regulated by NEC to prevent overheating and friction.
• Conduit Mouse
  A small device used to pull string through conduit, often propelled by vacuum or air pressure.
• Cross-Talk
  Interference caused by signal bleed between adjacent cables, often due to poor separation or bundling.
• Drop Ceiling
  A suspended ceiling system. Cables must not rest on tiles and must be supported by structured pathways.
• EMI (Electromagnetic Interference)
  Signal disruption caused by nearby electrical sources like power lines, lighting, or motors.
• Equipment Room
  A centralized space housing network hardware, often connected via backbone cabling.
• Fish Tape
  A tool used to guide wire or pull string through conduit or tight spaces.
• Heat Shrink Tubing
  A sleeve that shrinks when heated, used to seal cable ends or secure labels.
• Horizontal Cabling
  Cabling that runs from telecommunications rooms to individual work areas, typically using structured supports.
• Hook & Loop Strap
  A reusable, non-compressive bundling tool that protects cable geometry and allows airflow.
• ISO/IEC 11801
  International standard for generic cabling systems, covering performance and layout requirements.
• J Hook
  A structured support device used to route horizontal cabling, typically spaced every 4–5 feet per NEC.
• Labeling
  The process of marking cables with identifiers, service types, and destinations for traceability and maintenance.
• MAC (Moves, Adds, Changes)
  Common network modifications that require scalable routing, labeling, and documentation.
• Mesh Sock / Pulling Grip
  A sleeve used to grip cable during pulling, distributing force evenly to prevent damage.
• NEC (National Electrical Code)
  U.S. standard that governs electrical and cabling installations, including fire safety, routing, and support spacing.
• Patch Panel
  A rack-mounted interface where cables terminate and connect to network equipment.
• Plenum
  An air-handling space above ceilings or below floors. Requires plenum-rated cable and supports due to fire safety codes.
• PoE (Power over Ethernet)
  A technology that delivers power and data over twisted-pair Ethernet cables, subject to heat and bundling constraints.

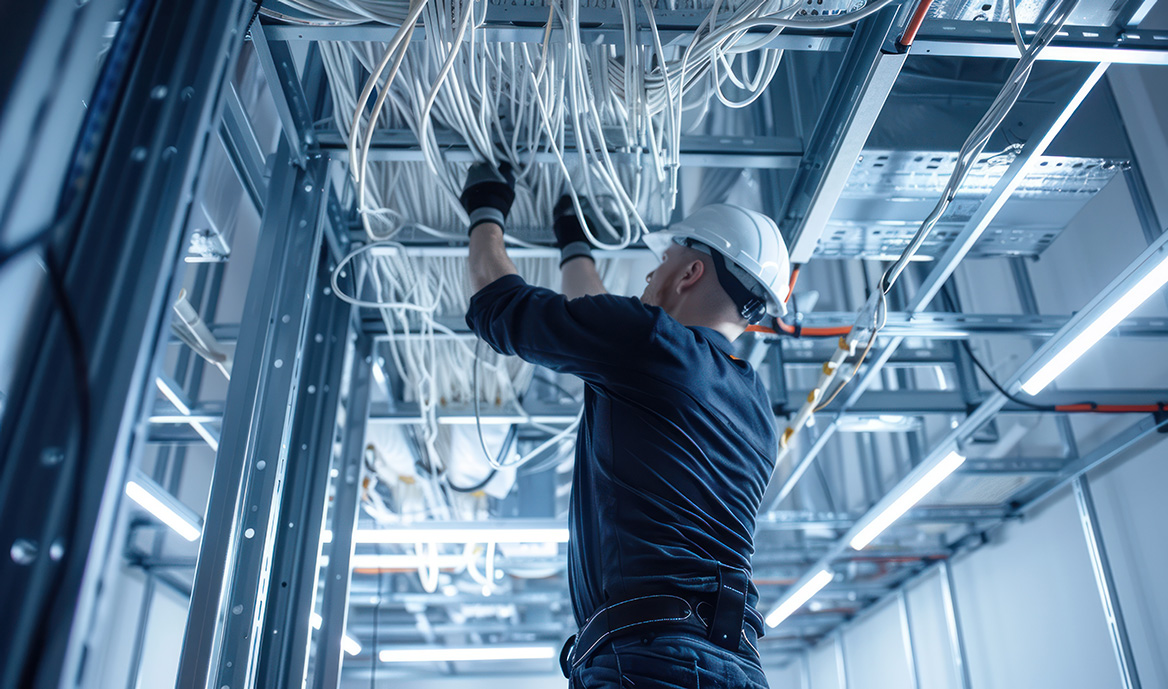

• Pull String
  A strong cord used to guide cable through conduit, often installed with a conduit mouse.
• Pulling Lubricant
  A cable-safe gel or liquid applied to reduce friction during pulls, especially in long or complex routes.
• Rack-Mounted Cable Manager
  A device used to organize and route cables within a rack, preventing tangles and ensuring airflow.
• Service Loop
  Extra slack left at termination points to allow for future moves, adds, or changes (MACs).
• Shielded Twisted Pair (STP)
  A cable type with shielding to reduce EMI, used in high-interference environments.
• Signal Degradation
  Loss of signal quality due to physical damage, EMI, poor routing, or improper cable handling.
• Structured Cabling
  A standardized cabling system that supports multiple hardware uses and is governed by industry standards.
• Support Spacing
  The required distance between cable supports (e.g., J Hooks), typically every 4–5 feet per NEC.
• Telecommunications Room
  A space that houses networking equipment and connects to horizontal cabling runs.
• Tray Capacity
  The volume of cable a tray can safely support, factoring in airflow, weight, and future scalability.
• Vacuum-Assisted Puller
  A tool that uses suction to pull string or cable through conduit, often used with conduit mice.
• Work Area Segment
  The portion of cabling that connects the telecommunications outlet to the end device in a user space.
• Zip Tie
  A fastener used to bundle cables. Not recommended for structured cabling due to compression and heat buildup risks.
