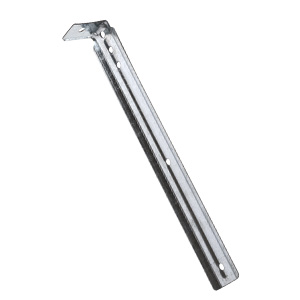

Angle Extension, J Hook Tree Bracket
Angle Bracket Extension for J Hook Tree, Ceiling Mount
Part # WACEXT
UPC: 811443030482
Facilitates clear cable pathways and separation increasing the cable management capacity of j hook systems
- Crafted from heavy-duty pre-galvanized steel
- Allows for multiple tiers of j hooks or bridle rings to be vertically mounted
- Enables hassle-free mounting of j hooks to ceilings at desired levels or hard to reach spaces
- Engineered to provide stress-free installation saving time and money
- Robust design delivers reliable functionality across various environments
- Pre-drilled 1/4″ hole for ceiling mount and ensures compatibility with various fasteners
Application
Designed for:
- Field-customizable j hook trees
- J hook extension
Use in:>
- Data centers, commercial buildings, and industrial environments
Installation
- Attaches to ceiling with mounting anchor (not included)
- Attach to any cable positioning hardware or attachment
Specifications
- Overall Length (In.): 1.75
- Overall Width (In.): 1.7425
- Overall Height (In.): 12.3325
- Overall Weight (Lbs.): 0.3205
- Material: Steel
- Finished: Pre-galvanized
Resources
Safety
- All instructions must be strictly adhered to for a safe, accurate, and effective installation and performance
- Ensure compliance with all governing codes and regulations and those required by the job site
- Never utilize product beyond their intended purpose or in a way that exceeds specified load ratings
- Failure to properly install, use, or apply the product as instructed can result in malfunction, property damage, serious injury, or death, and will void the warranty
- Utilize with industry-standard hardware that meets specified requirements
Packaging
- Carton Qty: 50
