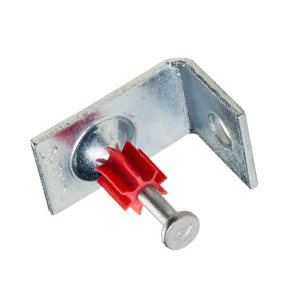

90° Angle Bracket with Powder Actuated Pin
Powder Actuated Shot, 90° Angle Bracket
Part # WACPA
UPC: 811443033223
Color: Silver
Provides a mounting base for securely and easily fastening hardware to concrete or steel
- Heavy‑duty, pre‑galvanized steel provides rigid support without bending or deforming
- Versatile design allows for vertical or horizontal mount applications
- Supporting angle bracket provides an attachment point for a multitude of cable management hardware
- Lightweight design makes it easy to handle and install
- 1‑1/4″ stem length with 0.278″ unthreaded hole
- 90° angle clip with pre‑set .300 × 1‑1/4″ powder‑actuated pin for fastening into concrete or structural steel
- Compatible with Ramset, Hilti, and Powers nail guns
Application
- Provides base support to attach j hooks, s hooks, chain, ceiling wire, 1/4″ bolts, or other apparatus to beam flanges
- Suitable for acoustical applications, suspended ceiling systems, fixtures, and wire and cable management
Installation
- Secures to concrete, masonry, steel, or composite metal decking using a powder‑actuated or single‑shot gas tool
Specifications
- Material: Pre-galvanized steel
Packaging
- Unit Packaging: 100
Safety
- Powder‑actuated tool license required
- Never place your hand over the muzzle of a loaded tool
- Always wear eye and hearing protection when operating a powder‑actuated tool
- Follow all installation instructions carefully to ensure safe and effective performance
- Comply with all applicable codes, regulations, and job site requirements
- Do not use the product beyond its intended purpose or specified load ratings
- Improper installation or use may result in malfunction, property damage, serious injury, or death, and will void the warranty
- Use only industry‑standard hardware that meets specified requirements
