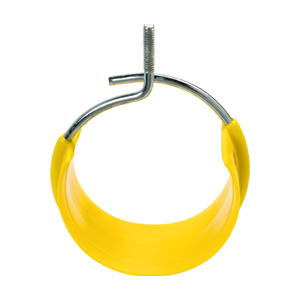

4″ Bridle Ring with Saddle
4″ Bridle Ring, 1/4-20 Thread, Saddle
Part # WBR4T400SDL
UPC: 811443032479
Quick, cost-effective cable management solution designed to support high-performance network cable pathway applications
- Crafted from heavy-duty, zinc plated steel which allows for great durability & corrosion resistance
- Designed with open loop for quick & easy cable installation
- Available in 2″ and 4″ ring diameter with 1.5″ stem
- Creates a distribution pathway for category cable, PoE, low-voltage, coax, signal & control cable, innerduct and flexible conduit & tubing
- Provides support for CAT3, CAT5e, CAT6, CAT6A, CAT7, low-voltage and fiber optic cables
- Plenum-rated saddle ensures an ideal bending radius and secure support for high-performance cable & fiber bundles
- 1/4-20 machine threaded for compatibility with beam clamps and various positioning devices
- Supports up to 50lbs
- Suitable for use in air handling systems (plenums) in accordance with Section 300.22 (C) and (D) of the National Electric Code
- UL & CUL listed
Application
Designed for:
- Wire & Cable
- Telcom/Voice Wire
- Network/Data Category Cable
- Low Voltage Wire
- Fire Alarm/Security Wire
- Audio/Video Cable
- Nurse Call Cable
- Signal & Control Tray Cable
- Electrical Wire under 600V
- Coax
- Broadband
- Satellite
- CCTV
- Duct Systems
- Flexible Conduit
- Tubing
Use in:
- Server Rooms and Data Centers
- Commercial and Office Buildings
- Industrial and Manufacturing
- Warehouses and Distribution Centers
- Food and Beverage
- Retail and Restaurants
- Hospitals and Medical Centers
- Schools and Colleges
- Energy and Renewables
- Mines and Oil Rigs
- Theaters and Concert Venues
- Residential and Multi-Unit Buildings
- Construction Sites
Installation
- Fastens to 1/4-20 threaded structural attachments, clamps or anchors for installation to steel beams, threaded rod or concrete, masonry, or metal surfaces
- Secures to strut using spring nuts
- Use for horizontal or vertical cable runs
Packaging
- Carton Qty: 100
Safety
- All instructions must be strictly adhered to for a safe, accurate, and effective installation and performance
- Ensure compliance with all governing codes and regulations and those required by the job site
- Never utilize product beyond their intended purpose or in a way that exceeds specified load ratings
- Failure to properly install, use, or apply the product as instructed can result in malfunction, property damage, serious injury, or death, and will void the warranty
- Utilize with industry-standard hardware that meets specified requirements
