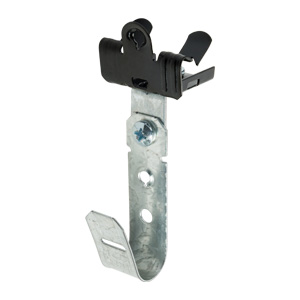

3/4″ J Hook with Angle Clip & Hammer on Beam Clamp, 5/16″-1/2″ Flange, 360° Rotation
3/4″ J Hook, Angle Clip, Hammer On Beam Clamp, 5/16″-1/2″ Flange, 360° Rotation
Sub-Brand: WJH Series
Part # WJH12ACM58
UPC: 811443030086
Cable management solutions for data centers, connected buildings and other commercial network cable pathway applications
- Pre-assembled with 90° angle clip & hammer on beam clamp
- Time saving and cost-effective alternative compared to using mesh cable basket or ladder tray
- Heavy duty pre-galvanized steel
- Smooth rounded edges for the proper bend radius of cables
- For all types of category cable, low-voltage wire, coax, innerduct and flexible conduit & tubing
- Provides excellent support for CAT5e, CAT6, CAT6A, CAT7 and fiber optic cables
- 360° swivel for flexible installation
- Bendable tab for securing wires
- UL & CUL listed
- Complies with NEC and TIA/EIA requirements for structured cabling systems
Application
Provides support in the distribution of:
-
- Wire & Cable
-
- Telcom/Voice Wire
- Network/Data/PoE Category Cable
- Optical Fiber Cable
- Low Voltage/Fire Alarm/Security Wire
- Audio/Video Cable
- Power and Control Tray Cable
- Sheathed & Metal-Clad Cable
-
- Coax
-
- Broadband
- Satellite
- CCTV
- Cell Signal Boosting
-
- Duct Systems
-
- Conduit
- Innerduct
- Tubing
-
- Wire & Cable
Installation
- Attaches to beam flange 5/16″ to 1/2″ thick using a hammer
Cable Capacity
- 16 Cat5e cables
- 10 Cat6 cables
- 6 Cat6A cables
- 5 Cat7 cables
- 16 fiber optic cables
Specifications
- Overall Length (In.): 2.3985
- Overall Width (In.): 1.7555
- Overall Height (In.): 4.847
- Overall Weight (Lbs.): 0.175
- Material: Pre-galvanized steel
