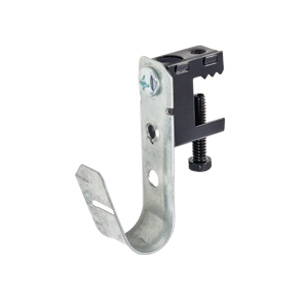

3/4″ J Hook, Spring Steel Beam Clamp, Upside Down Mount
Sub-Brand: WJH Series
Part # WJH12SSBCU
UPC: 811443034169
Cable management solution for data centers, connected buildings, commercial & industrial non-continuous cable pathway applications
SKU: WJH12SSBCU
Categories: J Hook System, J Hook with Spring Steel Beam Clamp
- Pre-assembled with Spring Steel Beam Clamp for organizing and routing cables from ceiling clamping to I-beam flange
- Upside down mounted beam clamp allows for effortless installation in tight spaces
- Cost-effective alternative compared to using cable tray or ladder rack
- Crafted from heavy-duty pre-galvanized steel
- Smooth rounded edges to provide proper bending radius
- Engineered to provide stress-free installation saving time and money
- Creates a distribution pathway for category cable, PoE, low-voltage, coax, signal & control cable, innerduct and flexible conduit & tubing
- Provides excellent support for CAT3, CAT5e, CAT6, CAT6E, CAT6A and fiber optic cables
- Supplied with an installed 1/4-20 x 1″ combination Philips/slotted hex head machine screw
- Serrated jaws deliver additional gripping power to tightly secure j hook to flange
- Bendable tab for securing wire
- Complies with NEC and TIA/EIA requirements for structured cabling systems
Application
Effectively supports the distribution of:
-
- Wire & Cable
-
- Telcom/Voice Wire
- Network/Structured Category Cable
- PoE Cable
- Optical Fiber Cable
- Low Voltage Wire
- Fire Alarm/Security Cable
- Access Control Cable
- Audio/Video Cable
- Power & Control Cable
- Signal Cable
- Sheathed & Metal-Clad Cable
-
- Coax
-
- Broadband
- Satellite
- CCTV
- Cell Signal Boosting
-
- Duct Systems
-
- Conduit
- Innerduct
- Tubing
-
- Wire & Cable
Installation
- Attaches to beam flange up to 1/2″ thick
- Secure with the included bolt using a socket driver or Philips head screwdriver
Cable Capacity
- 16 Cat5e cables
- 10 Cat6 cables
- 6 Cat6A cables
- 5 Cat7 cables
- 16 fiber optic cables
Resources
Packaging
- Carton Qty: 100
Specifications
- Material: Steel
- Finish: Pre-galvanized
