3/4″ J Hook Yellow

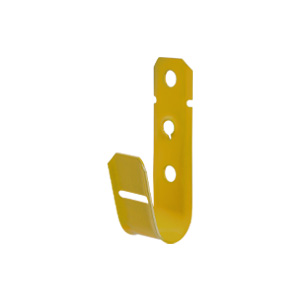

3/4″ J Hook, Yellow
Sub-Brand: WJH Series
Part # WJH12YL
UPC: 811443033452
Color-coded cable management solution for data centers, connected buildings, commercial, & industrial segmented cable pathway applications
- Features and Benefits
- Application
- Installation
- Cable Capacity
- Specifications
- Resources
- Packaging
- Safety
- Intuitively designed for versatile mounting—organize and route cables with ease
- Mounts directly to wall or ceiling
- Compatible with structural attachments via nut-and-bolt connection
- Cost-effective alternative to cable tray or ladder rack systems
- Constructed from heavy-duty pre-galvanized steel for durability
- Supports identification and organization of pathway applications
- Smooth, rounded edges maintain proper cable bending radius
- Engineered for stress-free installation—saves time and labor
- Enables color-coded distribution pathway for category cable, PoE, low-voltage, coax, signal/control cable, and innerduct/tubing
- Provides excellent support for CAT3, CAT5e, CAT6, CAT6E, CAT6A and fiber optic cables
- Notched to easily collapse to 90° angle allowing for ceiling mount
- Bendable tab flexes and locks wire firmly in place
- Compliant with NEC and TIA/EIA structured cabling standards
- UL and CUL listed
Application
- Secures, routes, and organizes:
- Telecom and voice wiring
- Network/data category cabling
- Low-voltage wire
- PoE cable
- Fire alarm system cable
- Access control cable
- Security and surveillance cable
- Audio/video cable
- Sheathed & metal-clad non-powered cable
- Signal and control tray cable
- Coaxial cable (TV, broadband)
- Flexible hose, tubing, and innerduct
- Typical Use Locations:
- Server rooms and data centers
- Commercial and office buildings
- Industrial facilities and manufacturing plants
- Warehouses and distribution centers
- Food and beverage processing environments
- Retail spaces and restaurants
- Hospitals and medical centers
- Schools, colleges, and educational campuses
- Energy and renewable infrastructure
- Theaters, concert venues, and event spaces
- Residential and multi-unit buildings
- Active construction sites
Installation
- Attaches to wall with mounting anchor (not included)
- Ceiling mount to 90° angle with top collapsed
- Attach to any cable positioning hardware or attachment
Cable Capacity
- 16 Cat5e cables
- 10 Cat6 cables
- 6 Cat6A cables
- 5 Cat7 cables
- 16 fiber optic cables
Specifications
- Overall Length (In.): 1.253
- Overall Width (In.): 0.888
- Overall Height (In.): 3.095
- Overall Weight (Lbs.): 0.0565
- Material: Steel
- Finish: Pre-galvanized, Painted
- Color: Yellow
Resources
Packaging
- Unit Packaging: 100
Safety
- All instructions must be strictly adhered to for a safe, accurate, and effective installation and performance
- Ensure compliance with all governing codes and regulations and those required by the job site
- Never utilize product beyond their intended purpose or in a way that exceeds specified load ratings
- Failure to properly install, use, or apply the product as instructed can result in malfunction, property damage, serious injury, or death, and will void the warranty
- Utilize with industry-standard hardware that meets specified requirements
