4″ J Hook Red

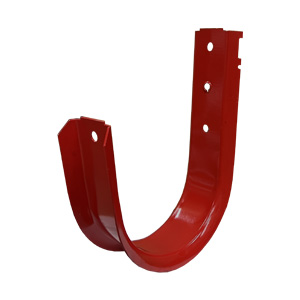

4″ J Hook, RedSub-Brand: WJH SeriesPart # WJH64RDUPC: 811443032196
Color-coded cable management solutions for data centers, connected buildings and other commercial network cable pathway applications
- Time saving and cost-effective alternative compared to using mesh cable basket or ladder tray
- Heavy duty pre-galvanized steel
- Smooth rounded edges for the proper bend radius of cables
- Ideal for use where there is a need to designate separate pathways
- For category cable, low-voltage wire, coax, innerduct and flexible conduit & tubing
- Provides excellent support for CAT5e, CAT6, CAT6A, CAT7 and fiber optic cables
- Notched to easily collapse to 90° angle allowing for ceiling mount
- Includes wire cable retainer clip
- UL & CUL listed
- Complies with NEC and TIA/EIA requirements for structured cabling systems
Application
Provides support in the distribution of:
-
- Wire & Cable
-
- Telcom/Voice Wire
- Network/Data/PoE Category Cable
- Optical Fiber Cable
- Low Voltage/Fire Alarm/Security Wire
- Audio/Video Cable
- Power and Control Tray Cable
- Sheathed & Metal-Clad Cable
-
- Coax
-
- Broadband
- Satellite
- CCTV
- Cell Signal Boosting
-
- Duct Systems
-
- Conduit
- Innerduct
- Tubing
-
- Wire & Cable
Installation
- Attaches to wall with mounting anchor (not included)
- Ceiling mount to 90? angle with top collapsed
- Attach to any cable postioning hardware or attachment
Cable Capacity
- 370 Cat5e cables
- 230 Cat6 cables
- 150 Cat6A cables
- 125 Cat7 cables
- 300 Fiber optic cables
Specifications
- Overall Length (In.): 5.7915
- Overall Width (In.): 2.001
- Overall Height (In.): 7.129
- Overall Weight (Lbs.): 0.438
- Material: Pre-galvanized steel
