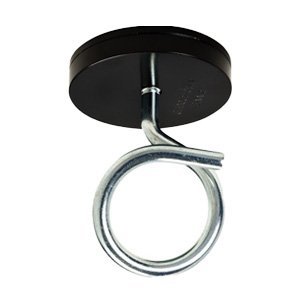

1-1/4″ Magnetic Bridle Ring with 150lb UHD Magnet
1.25″ Bridle Ring, 150 lb Magnet, 1.5″ Stem
Product Series: UHD Series
Part # WUMAG-WBR4T125
UPC: 811443033698
Ultra-strong, quick-mounting alternative cable management solution for network cable pathway applications
- 150lb UHD Magnet pre‑assembled to bridle ring for cable routing
- Ultra‑strong neodymium rare earth magnet, specially engineered for maximum hold on vertical and horizontal ferromagnetic surfaces
- Steel cup directs magnetic field to fastening surface, increasing magnetic pull force
- Vertical pull force of up to 150 lbs ensures strong adhesion on thin sheet metal
- Surface magnetic force resists sliding more effectively than conventional magnets
- Heavy‑duty zinc‑plated steel bridle ring delivers durability and corrosion resistance
- Available in 1.25″, 2″, and 4″ ring diameter with 1.5″ stem
- Permanent fixation yet easily repositioned, offering maximum flexibility for changing needs or layouts
- Quick, hassle‑free installation saves time and money with no tools required
- No drilling or adhesives needed, making them ideal for temporary installations
- Corrosion‑resistant black epoxy coating ensures long‑lasting protection
- Maintains adhesion even when exposed to oil, grease, dirt, and extreme temperatures
- Magnet will not interfere with Ethernet or Wi‑Fi signals
- Creates a distribution pathway for category cable, PoE, low-voltage, fire alarm, coax, signal, and control cable
- Provides excellent support for CAT3, CAT5e, CAT6, and CAT6E cable
- Delivers consistent performance across a wide range of applications
Application
Designed for:
- Wire & Cable
- Telcom/Voice Wire
- Network/Data Category Cable
- Low-Voltage Cabe
- Fire Alarm/Security Wire
- Audio/Video Cable
- Nurse Call Cable
- Signal & Control Tray Cable
- Coax
- Broadband
- Satellite
- CCTV
- Server Rooms and Data Centers
- Commercial and Office Buildings
- Industrial and Manufacturing
- Warehouses and Distribution Centers
- Food and Beverage
- Retail and Restaurants
- Hospitals and Medical Centers
- Schools and Colleges
- Energy and Renewables
- Mines and Oil Rigs
- Theaters and Concert Venues
- Residential and Multi-Unit Buildings
- Construction Sites
Use in:
Installation
- Secures to steel beams, ceiling decks, sheet metal, metal joists, van walls and other ferromagnetic surfaces
- Engineered for maximum attachment to thin metal
- Use for horizontal or vertical cable runs
Specifications
- Magnet Size: 2″ x 3/8″ (50.8mm x 9.5mm)
- Magnet Threaded Hole: 1/4 x 20
- Magnet Vertical Pull Force: 150 lb
- Magnet Coating: Epoxy
- Magnet Material:
- Magnet : Neodymium (NdFeB)
- Magnet Fender Washer: Steel
- Material: Zinc-plated steel
Safety
- Handle neodymium magnets with care to prevent damage or injury
- Keep magnets away from individuals with pacemakers or other medical implants
- Magnets are not toys; store safely out of reach of children and pets
- Large, powerful magnets can pinch fingers or cause injury — use caution during handling
Packaging
- Unit Packaging: 10
