When to Specify the Saddle

CAT6A and fiber optic cables demand precise mechanical support. Standard bridle rings—bare metal loops with no saddle, curvature, or surface control—fail to meet these requirements. CAT6A cables are larger and bend-sensitive, with tighter bend radius tolerances than earlier categories. Fiber is even more fragile, with microbending risks that degrade signal performance. When routed through standard rings, both cable types are subjected to tight bends and pressure points that violate manufacturer tolerances and compromise signal integrity.

To prevent these failure modes and ensure mechanical compliance, saddled bridle rings must be used for all CAT6A and fiber installations.

1. Overview

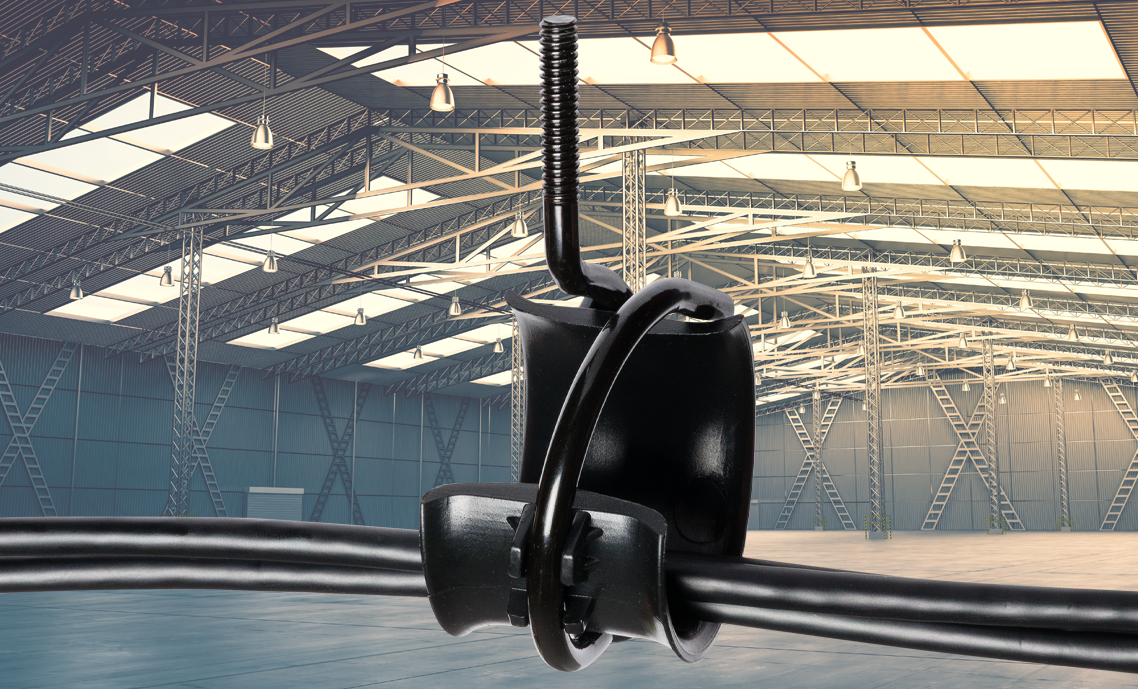

Saddled bridle rings are designed for bend-sensitive cable types such as CAT6A and fiber. Their plastic saddle inserts introduce curvature and surface control that standard bridle rings lack. This guide outlines the conditions that require saddled bridle rings to preserve cable integrity, meet inspection standards, and provide a safe, mechanically sound method for aerial cable distribution.

2. Required for Bend-Sensitive Cable Types

Use saddled bridle rings when supporting:

  • CAT6A and CAT6A Shielded Category Cable
  • Fiber Optic Cable
  • Shielded Cable
  • Multi-Conductor Control Cable (typically heavier and more rigid)

Standard bridle rings are not acceptable for these cable types due to bend radius and jacket deformation risks.

3. Required When Bend Radius Must Be Preserved

Plastic saddle inserts maintain cable geometry and prevent tight bends. Use saddled bridle rings when bend radius is critical to performance, compliance, or inspection outcomes. Saddled bridle rings provide defined diameter and surface geometry for safe, strong, and cost-effective support.

4. Required When Jacket Integrity Must Be Protected

Plastic saddle surfaces reduce compression and abrasion. Use saddled bridle rings when jacket deformation could compromise signal integrity or long-term reliability. This is especially critical when deploying heavy, multi-conductor armored cables, control cables, or bundled runs, where cable weight increases the risk of jacket damage at support points.

5. Required in Inspected or Audited Installations

Saddled bridle rings align with TIA-568, TIA-569-D, and NEC 300.11. Use them in any installation subject to inspection, audit, or specification review. Their extra support and protection of cable jackets help ensure compliance and reduce risk of rejection.

For installations within air handling spaces, use AH-2 plenum-rated saddled bridle rings. These variants meet fire code requirements and are approved for use in plenum zones, including ceiling cavities and return-air pathways. Standard rings are not acceptable in these environments due to material and fire rating limitations.

6. Suggested Deployment Environments

Saddled bridle rings are strongly recommended in environments where cable performance, compliance, and long-term reliability are critical:

  • Commercial: High-density telecom, access control, and shielded data runs
  • Healthcare: Fiber and CAT6A pathways supporting diagnostics, monitoring, and life safety systems
  • Data Centers: Bend-sensitive cable runs with strict inspection and uptime requirements
  • Education and Government: Structured cabling with shielded or fiber components
  • Industrial: Multi-Conductor Control Cable and Fiber Optic Cable runs in shielded or vibration-prone zones
  • MDU (Multi-Dwelling Units): Shared risers and backbone pathways where CAT6A and fiber are routed across multiple floors or tenant spaces

Specifier discretion applies, but saddled bridle rings should be the default in any environment where bend radius violations or jacket damage could impact performance or compliance.

7. Standard Bridle Rings Are Not Acceptable When…

  • Cable is bend-sensitive: CAT6A and fiber require curvature and surface control
  • Cable is shielded or stiff-jacketed: Standard rings apply point pressure that distorts the cable’s shape and compromises jacket integrity
  • Installation is subject to inspection: TIA and NEC standards require bend radius preservation
  • Signal integrity is critical: Crosstalk, attenuation, and microbending are triggered by tight bends
  • Long-term reliability is expected: Jacket damage and stress points reduce cable lifespan
  • Specifier has locked performance criteria: Substitutions violate intent and risk rejection
  • Environment includes vibration, movement, or thermal cycling: Saddled bridle rings reduce mechanical stress
Saddled bridle rings are not a premium upgrade—they’re a mechanical necessity for preserving signal integrity, passing inspection, and protecting every CAT6A and fiber run from day one.

This guide is intended for informational and reference purposes only. It does not supersede local codes, manufacturer specifications, or the judgment of the Authority Having Jurisdiction (AHJ). Installation practices must always be verified against current NEC, ANSI/TIA standards, and site-specific requirements. Winnie Industries products must be installed and used in accordance with official instruction sheets or designated training. Products should never be applied beyond their intended purpose or in a manner that exceeds specified load ratings. Proper fastening is critical to system integrity and functionality, requiring secure attachment to structurally sound components capable of supporting imposed loads. All installations must comply with governing codes, regulations, and job site requirements. Always consult your AHJ for specific regulatory guidance.
