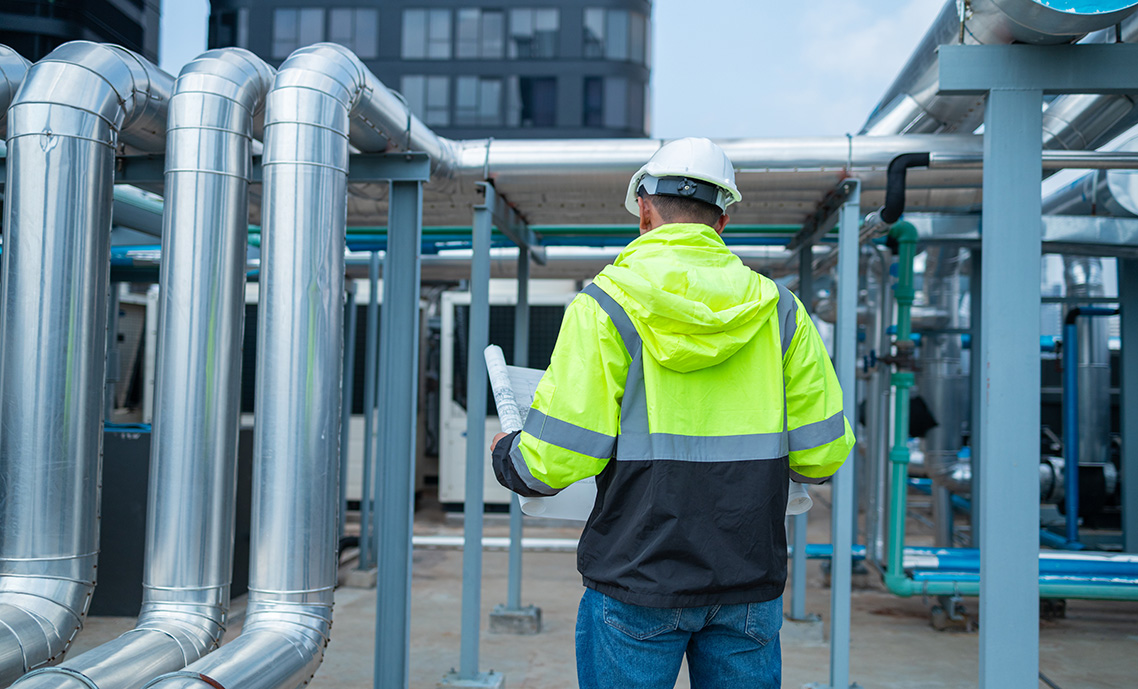

Routing Hazards in Building Systems

1. HVAC Systems

HVAC systems regulate airflow, temperature, and humidity using ductwork, air handlers, motors, and rooftop units. These components introduce vibration, condensation, and electromagnetic interference—all of which can degrade cable performance or compromise support integrity.

Best Practice: Maintain separation from vibration sources, EMI-generating equipment, and chilled airflow paths to prevent cable degradation and inspection failure.

• Routing near HVAC demands understanding vibration, airflow, and EMI mechanisms.
• Maintain separation from motors, VFDs, and EMI sources per TIA-569-D and manufacturer specs.
• Avoid routing above or adjacent to ductwork carrying chilled or exhaust air to minimize condensation and vibration damage.
• Never route inside plenums unless cable is plenum-rated and explicitly permitted.
• Anchor support hardware securely to minimize vibration transfer from rooftop units or mechanical rooms.

Routing errors near HVAC systems often result in premature cable failure, inspection flags, or service disruption. These zones must be treated as dynamic mechanical environments—not passive infrastructure.

2. Plumbing Systems

Plumbing systems distribute water and waste through pressurized lines, drains, and sprinkler mains. These zones introduce moisture, condensation, and leak risk—especially near mechanical rooms and ceiling cavities.

Best Practice: Maintain vertical clearance and avoid routing beneath pressurized lines to protect against leaks, condensation, and thermal cycling.

• Proximity to plumbing introduces risks of moisture, leaks, and thermal cycling.
• Avoid routing directly beneath pressurized water lines, drain pipes, or sprinkler mains.
• Maintain vertical clearance to prevent drip exposure from condensation or leaks.
• Use covered cable trays or drip shields in mixed mechanical zones.
• Flag plumbing-adjacent runs in commissioning documentation for future inspection.

Routing near plumbing must assume failure conditions—condensation, leaks, and thermal stress are not hypothetical. Protective routing and documentation are mandatory.

3. High-Voltage Systems

High-voltage systems distribute electrical power across feeders, panels, and emergency circuits. These systems generate inductive fields and require strict separation from low-voltage cabling to prevent signal degradation and safety violations.

Best Practice: Maintain NEC-compliant separation, avoid parallel runs, and use physical barriers to prevent EMI and safety violations.

• Routing near high-voltage systems carries risks of inductive interference and safety hazards.
• Maintain NEC-mandated separation distances (e.g., NEC 725.136, 300.3(C)).
• Avoid parallel runs with high-voltage feeders to reduce signal degradation.
• Route low-voltage cabling at right angles when crossing high-voltage paths.
• Use physical barriers or dedicated raceways where separation is not possible.
• Clearly label conduit and cable trays to prevent cross-system confusion during maintenance.

Failure to respect high-voltage separation logic results in EMI, inspection failure, and potential life safety violations. These zones demand strict editorial and physical discipline.

4. Access Doors and Panels

Access doors, hatches, and service panels provide entry to mechanical, electrical, and plumbing systems. Their swing paths and clearance zones must remain unobstructed to ensure safe maintenance and emergency access.

Best Practice: Maintain clearance around swing paths and avoid routing through service corridors to preserve access and prevent damage.

• Access doors and panels are active conflict zones requiring clear routing strategies.
• Never route cabling across or within the swing path of access doors, service panels, or ceiling hatches.
• Maintain clearance around HVAC access doors, electrical panel covers, plumbing cleanouts, and valve boxes to avoid obstruction or damage during maintenance.
• Avoid routing cables through mechanical chases serving as service corridors.
• Offset pathways above or below door swing zones to preserve unobstructed serviceability.
• Flag all proximity conflicts in as-built documentation and final cabling audits.
• Coordinate early with trades as access zones may be redefined during rough-in.

Routing across access zones creates direct service conflicts and inspection failures. These are not passive architectural features—they are active mechanical interfaces.

5. Elevator Shafts and Lift Equipment

Elevator systems include vertical shafts, motor rooms, control panels, and cabling infrastructure. These zones introduce vibration, EMI, and vertical movement hazards that can damage or disrupt cable runs.

Best Practice: Coordinate with elevator contractors and maintain vertical clearance to avoid abrasion, EMI, and routing conflicts.

• Avoid routing through elevator shaft walls or motor zones without dedicated raceway and AHJ approval.
• Maintain vertical clearance from lift equipment to prevent abrasion and EMI exposure.
• Coordinate with elevator contractor to define no-routing zones during rough-in.
• Flag all elevator-adjacent runs in commissioning documentation.

Elevator zones are high-risk mechanical corridors. Routing must be coordinated, documented, and physically isolated to prevent service disruption or inspection failure.

6. Fire Dampers and Smoke Control Zones

Fire dampers and smoke control systems activate during emergencies to contain smoke and flame. These mechanical devices are embedded in ductwork and tied to life safety systems.

Best Practice: Maintain clearance from damper housings and smoke control paths to preserve life safety system integrity.

• Never route cabling across damper housings or within actuation paths.
• Maintain clearance from smoke control zones and airflow regulators.
• Coordinate with fire protection drawings to identify mechanical hazard zones.
• Use fire-rated cable only where explicitly permitted.

Routing across fire damper zones compromises life safety systems and violates mechanical coordination protocols. These zones must be flagged and physically avoided.

7. Ceiling Grid Suspension Systems

Suspended ceiling grids support tiles, lighting, and HVAC diffusers. They are subject to seismic sway, fixture load transfer, and frequent access—all of which can stress or dislodge improperly routed cabling.

Best Practice: Use dedicated supports above the grid and maintain clearance for fixture access and seismic movement.

• Never attach cabling directly to ceiling grid members.
• Route above grid using dedicated cable trays or supports.
• Maintain clearance for tile removal and fixture servicing.
• Use seismic-rated supports in zones with lateral movement risk.

Ceiling grids are not structural supports. Routing must respect movement, access, and fixture load logic to prevent cable failure and inspection flags.

8. Operable Partitions and Folding Walls

Operable partitions and folding walls shift laterally using tracks and hinges. These zones introduce compression, movement, and entrapment risks for any cabling routed nearby.

Best Practice: Maintain lateral clearance and avoid routing through movement paths to prevent cable damage and obstruction.

• Avoid routing within or across movement paths of operable partitions.
• Maintain lateral clearance from folding wall tracks and hinges.
• Use fixed supports above or below movement zones.
• Flag routing conflicts in architectural coordination drawings.

These are dynamic architectural systems—not static walls. Routing must anticipate movement and preserve operability without compromise.

9. Security Zones (e.g., Detention Ceilings, Secure Enclosures)

Security-rated zones include tamper-resistant ceilings, anti-ligature enclosures, and restricted-access areas. These environments require hardened cabling and strict routing permissions.

Best Practice: Use armored cabling and coordinate routing permissions to comply with physical and regulatory constraints.

• Use armored cable or conduit in secure zones.
• Avoid routing through detention ceilings without approval.
• Coordinate with security consultants to define routing permissions.
• Label all cabling clearly to prevent unauthorized access or confusion.

Security zones are governed by physical and regulatory constraints. Routing must be hardened, documented, and coordinated to prevent breach or inspection failure.

10. Roof Expansion Joints

Expansion joints allow buildings to flex with thermal and structural movement. These architectural features are designed to absorb motion between roof sections, wall assemblies, or structural slabs—posing a direct risk to rigid cable routing.

Best Practice: Use flexible conduit and slack routing to tolerate movement across joint zones and prevent structural conflict.

• Use flexible conduit or expansion fittings when crossing joints.
• Route cables with sufficient slack or flexible sections to tolerate movement.
• Coordinate with architectural plans to identify joint locations.
• Flag all expansion joint crossings in final documentation.

Expansion joints are active movement zones. Rigid routing across them leads to cable failure, conduit separation, and structural conflict. Flexibility and documentation are non-negotiable.

11. Raised Floor Systems

Raised floor systems support cable trays, airflow plenums, and modular power distribution. These zones introduce compression, access, and airflow risks—especially in data centers and control rooms.

Best Practice: Use dedicated supports and maintain clearance from airflow plenums and access panels to prevent cable damage and service disruption.

• Never route cabling directly beneath removable floor tiles or access hatches.
• Maintain separation from underfloor HVAC plenums and pressurized airflow zones.
• Use low-profile cable trays or conduit rated for raised floor environments.
• Coordinate with IT and facilities teams to define access-critical zones.
• Flag all underfloor routing in commissioning documentation and cable audits.

Raised floors are active service zones—not passive cavities. Routing must preserve airflow, access, and modularity without compromise.

12. Generator and ATS Zones

Generators and automatic transfer switches (ATS) provide emergency power during outages. These zones introduce vibration, EMI, and switching surge risks—especially near mechanical rooms and exterior enclosures.

Best Practice: Maintain separation from generator enclosures and ATS panels, and avoid parallel runs with emergency feeders to prevent EMI and surge damage.

• Never route low-voltage cabling across generator pads or within ATS swing zones.
• Maintain NEC-compliant separation from emergency feeders and switching equipment.
• Use shielded cabling or metallic conduit in high-EMI zones.
• Coordinate with electrical contractor to define surge-prone areas during rough-in.
• Flag generator-adjacent runs in commissioning documentation and emergency power audits.

Generator and ATS zones are high-risk power environments. Routing must anticipate surge, vibration, and switching interference to preserve system integrity and inspection compliance.
