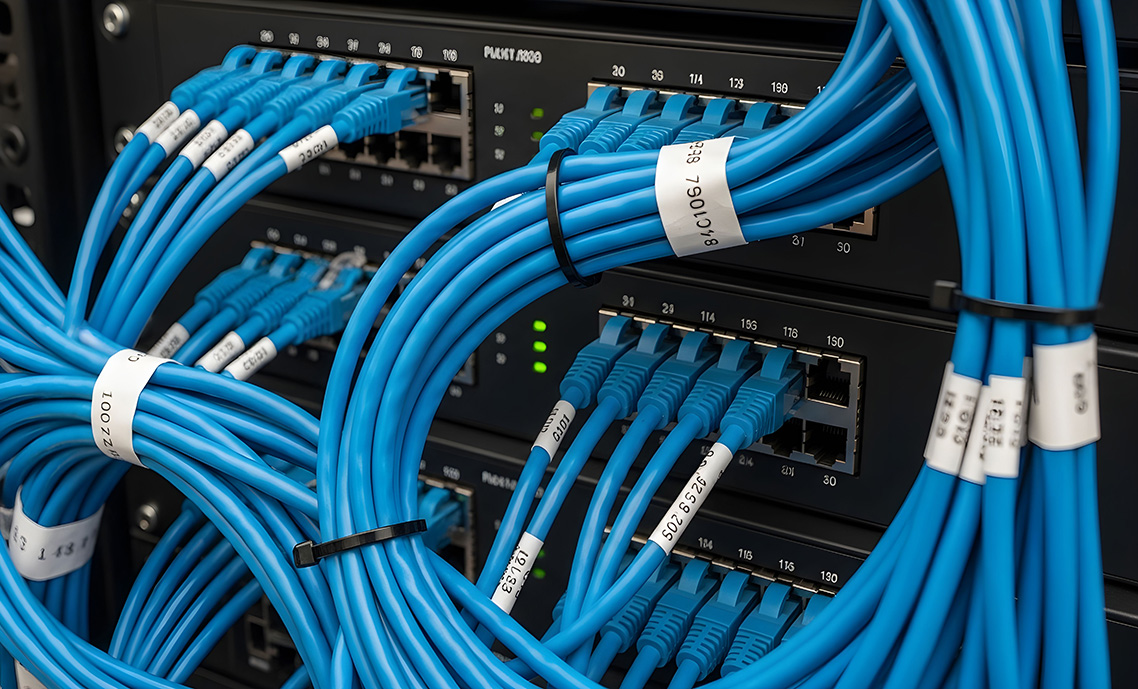

If It’s Not Labeled, It’s Lost
Clear labeling and identification are the backbone of reliable low‑voltage systems. When cable pathways, terminations, patch panels, and as‑builts aren’t labeled consistently, troubleshooting slows, documentation breaks, and compliance issues follow. Proper labeling keeps every cable, pathway, and device traceable throughout the life of the installation. Strong labeling practices also prevent small oversights from turning into major service delays later.
These common mistakes highlight where labeling, color‑coding, and system identification often fail—and how to correct them before they impact future MAC work or system performance.
1. Handwritten Labels Don’t Meet Standards
Why it matters:
Ink fades, handwriting varies, and AHJs reject anything that isn’t machine‑printed.
Recommended Action:
Use machine‑printed labels rated for the environment.
2. Single‑End Labeling Breaks Traceability
Why it matters:
A single‑end label makes tracing impossible and breaks documentation accuracy.
Recommended Action:
Label both ends with matching, machine‑printed identifiers.
3. Mixed Label Formats Create Long‑Term Confusion
Why it matters:
Mixed numbering schemes and abbreviations create long‑term confusion.
Recommended Action:
Standardize label structure across all systems and trades.
5. Labels Must Match the As‑Built Exactly
Why it matters:
If field labels and documentation disagree, the documentation becomes unreliable.
Recommended Action:
Update labels and as‑builts together during installation and closeout.
6. Don’t Label Until the Cable Passes Testing
Why it matters:
Failed cables must be reworked, which invalidates early labeling.
Recommended Action:
Test first, then label only verified, passing cables.
7. Cheap Labels Fail in Real‑World Conditions
Why it matters:
Heat, humidity, and plenum conditions destroy cheap labels.
Recommended Action:
Use plenum‑rated, adhesive‑backed labels designed for LV environments.
8. Too Many Labels Create Noise, Not Clarity
Why it matters:
Excess labels create noise and slow down identification.
Recommended Action:
Apply only the required labels in consistent, predictable locations.
9. Labels Must Stay With the Termination
Why it matters:
Jackets get trimmed or repositioned, separating the label from the connection.
Recommended Action:
Label the termination point or use wrap‑around labels that stay with the cable.
10. Unclear Abbreviations Cause Mis‑Tracing
Why it matters:
Unclear shorthand forces guesswork and leads to mis‑tracing.
Recommended Action:
Use standardized, documented abbreviations shared across the project.
11. Patch Panels Must Be Labeled to Match Cables
Why it matters:
Labeled cables with unlabeled fields create mismatches and confusion.
Recommended Action:
Label every termination field to match the cable ID scheme.
12. Protect Labels During Installation
Why it matters:
Labels get rubbed off, torn, or covered in dust during routing.
Recommended Action:
Apply labels after rough‑in or use protective sleeves during installation.
13. Color Coding Requires a Standard
Why it matters:
Random color choices create inconsistent identification across systems.
Recommended Action:
Establish a color‑coding standard and apply it consistently.
14. Stickers Aren’t a Reliable Color‑Coding Method
Why it matters:
Stickers peel, fade, and fall off in plenum spaces or dusty ceilings, breaking the color‑coding scheme.
Recommended Action:
Use painted j hooks or permanent, high‑visibility markings that survive the life of the installation.
15. Update Labels After Every MAC Event
Why it matters:
Moves, adds, and changes break the labeling scheme if not updated immediately.
Recommended Action:
Update labels and documentation during every MAC event.
16. Follow System‑Specific Labeling Requirements
Why it matters:
Fire alarm, security, access control, and network systems all follow different conventions.
Recommended Action:
Follow the labeling standards required for each system type.
Clear identification ensures cable pathways, terminations, and devices remain easy to trace throughout the system’s life.
