The Relay Race You Don’t Want to Lose

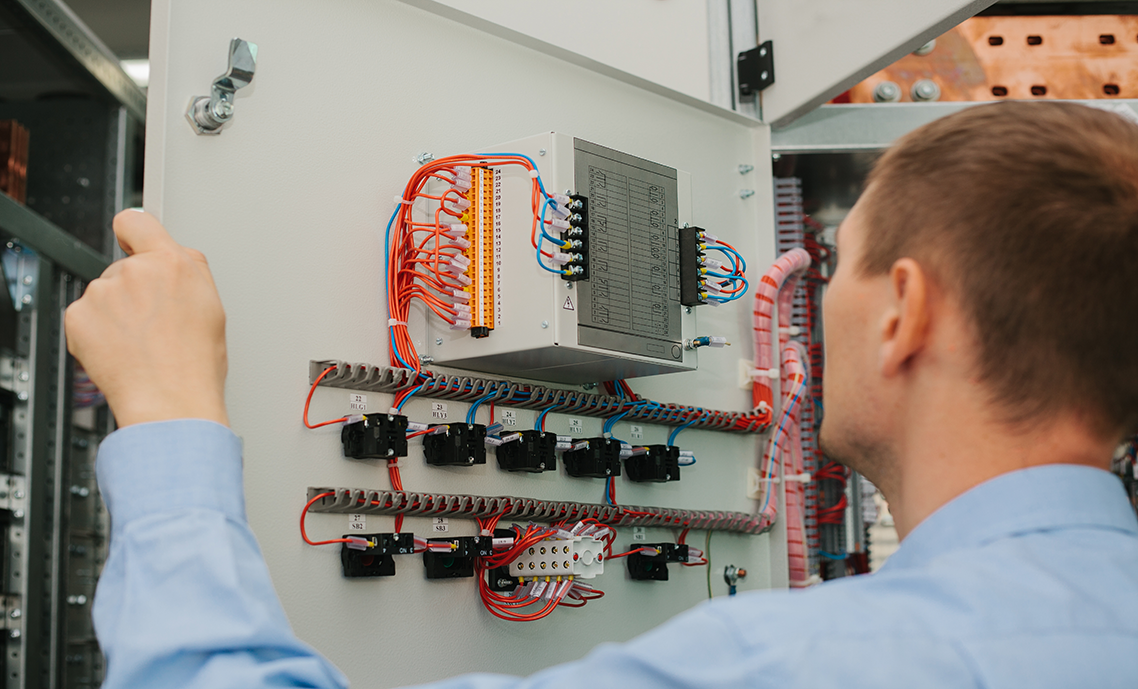

Low-voltage relays are the backbone of safe, scalable control systems across lighting, HVAC, and automation environments. Operating on control voltages typically between 12V and 30V, these devices allow specifiers and contractors to isolate high-voltage loads while maintaining responsive, low-energy switching. Whether used in latching configurations for energy efficiency or integrated into building automation networks, relays must be selected and installed with precision—coil voltage, contact ratings, and mounting logic all play critical roles. When misapplied, they can trigger silent failures, inspection delays, or system-wide instability. Field-ready deployment demands not just correct wiring, but a forensic understanding of relay behavior under real-world conditions.
Understanding how relays fail is just as critical as knowing how they function—each mistake carries real risk to system integrity, serviceability, and code compliance.
Power Integrity and Compatibility
1. Incorrect Coil Voltage Selection
Why It Matters:
A mismatched coil voltage prevents the relay from energizing correctly and can cause immediate coil failure, nuisance faults, or unsafe field conditions.
- Using a 120V coil in a 24V system (or vice versa) leads to immediate failure or no activation.
- Always verify coil voltage matches the control circuit—especially in retrofit or multi-zone panels.
2. Overloading the Contacts
Why It Matters:
Overloaded contacts degrade rapidly, leading to welded contacts, arcing, or unexpected equipment shutdowns.
- Exceeding rated amperage or voltage causes pitting, arcing, or welded contacts.
- Always check both resistive and inductive load ratings—especially for lighting ballasts or HVAC compressors.
3. Inadequate Power Supply or Voltage Drop
Why It Matters:
Voltage sag prevents the coil from pulling in reliably, causing intermittent operation and hard-to-diagnose field failures.
- Undersized transformers or long wire runs can cause voltage sag, preventing coil activation.
- Confirm voltage at relay terminals under load—especially in multi-zone or retrofit systems.
Wiring, Layout, and Labeling
4. Miswiring of Common, NO, and NC Contacts
Why It Matters:
Incorrect terminal wiring reverses relay logic, causing loads to energize at the wrong time or fail to operate.
- Field techs often confuse Normally Open (NO) and Normally Closed (NC) terminals.
- Labeling or color-coding during pre-wire helps prevent reversed logic or stuck loads.
5. Improper Mounting or Ventilation
Why It Matters:
Poor airflow causes heat buildup, shortening relay life and increasing the risk of thermal failure.
- Relays installed in tight enclosures without airflow may overheat.
- Use DIN rail spacing guidelines and avoid stacking near heat-generating components.
6. Disorganized or Unlabeled Wiring
Why It Matters:
Unlabeled wiring slows troubleshooting and increases the likelihood of miswiring during service.
- Bundled or unlabeled control wires slow down troubleshooting and increase miswiring risk.
- Use wire markers, terminal IDs, and color-coded control paths.
Control Logic and Functionality
7. Failure to Test Latching Logic
Why It Matters:
Incorrect pulse timing or polarity causes latching relays to misfire, chatter, or burn out coils.
- Latching relays require pulse logic—holding voltage too long can cause misfire or coil burnout.
- Confirm pulse duration and polarity match relay spec (especially in dual-coil systems).
8. Skipping Functional Testing and Commissioning
Why It Matters:
Commissioning verifies that relay logic, override behavior, and load switching operate correctly before the system goes live.
- Powering up without verifying relay logic, override function, and contact behavior risks field failure.
- Always test NO/NC behavior, coil response, and load switching under real conditions.
Protection and Compliance
9. Lack of Surge Suppression
Why It Matters:
Inductive kickback damages relay contacts and coils, reducing lifespan and causing intermittent failures.
- Inductive loads (motors, solenoids) can backfeed voltage spikes, damaging relay contacts.
- Install flyback diodes (DC) or snubber circuits (AC) where applicable.
10. Neglecting NEC or UL Listing Requirements
Why It Matters:
Using relays outside their listed application can cause inspection failures or unsafe system behavior.
- Using relays not rated for the application (e.g., lighting vs. motor control) risks inspection failure.
- Confirm UL, NEC, or local code compliance—especially in fire alarm or life safety circuits.
11. Poor Grounding or Earthing Practices
Why It Matters:
Improper grounding causes erratic relay behavior, false triggering, and EMI-related failures.
- Inadequate grounding can cause erratic relay behavior, false triggering, or EMI interference.
- Always bond control circuits per NEC Article 250 and manufacturer specs.
Documentation and Manufacturer Guidance
12. No Manual Override or Labeling
Why It Matters:
Without clear labeling or manual override, technicians lose critical visibility during troubleshooting.
- Without a manual switch or clear labeling, troubleshooting becomes guesswork.
- Include override toggles and terminal ID tags for serviceability.
13. Ignoring Manufacturer’s Wiring Guidelines
Why It Matters:
Manufacturer specs ensure proper torque, spacing, and conductor sizing—critical for safe operation.
- Skipping datasheet instructions leads to misfires, coil damage, or failed inspections.
- Follow torque specs, wire gauge limits, and terminal spacing exactly.
Environmental and Site Conditions
14. Neglecting Environmental Conditions
Why It Matters:
Environmental stress accelerates relay wear, leading to premature failure and unreliable operation.
- Relays installed in high-humidity, dusty, or vibration-prone areas without protection degrade prematurely.
- Use sealed enclosures, vibration dampers, or IP-rated components as needed.
When relays are installed with precision and foresight, they don’t just switch loads—they safeguard systems, streamline service, and earn long-term trust in the field.
