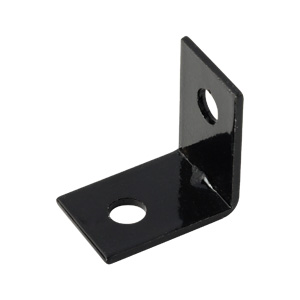

90° Angle Bracket, 1/4″ Hole, Black
90° Angle Bracket, 1/4″ Hole, Black
Part # WACBK
UPC: 811443034534
Color: Black
Provides a rigid 90° mounting base for securely fastening hardware to walls or ceilings
- Heavy‑duty pre‑galvanized 13‑gauge steel provides rigid support without bending or deforming
- Sleek black design aesthetically blends with dark open ceilings
- Versatile L‑shaped design allows vertical or horizontal mounting on structural surfaces
- Angle bracket creates a stable attachment point for cable management hardware and related components
- Lightweight form factor makes handling and installation straightforward in the field
- Two unthreaded 1/4″ pre‑drilled holes for secure fastening with screws or bolts
- Accommodates 1/4″ threaded rod when used as a mounting base
Application
- Provides base support for j hooks, wire, threaded rod, S‑hooks, chain, or other hardware and appliances
- Suitable for providing structural support and reinforcement
Installation
- Secure to ceiling or wall with screw or mounting anchor (not included)
- Install to wood or concrete
- Can be assembled to other structural attachments using nut & bolt
Specifications
- Overall Length (In.): 1.139
- Overall Width (In.): 1.176
- Overall Height (In.): 0.75
- Overall Weight (Lbs.): 0.32
- Material: Pre-galvanized steel
Packaging
- Unit Packaging: 100
- Carton Packaging: 1000
Safety
- Follow all installation instructions carefully to ensure safe and effective performance
- Comply with all applicable codes, regulations, and job site requirements
- Do not use the product beyond its intended purpose or specified load ratings
- Improper installation or use may result in malfunction, property damage, serious injury, or death, and will void the warranty
- Use only industry‑standard hardware that meets specified requirements
