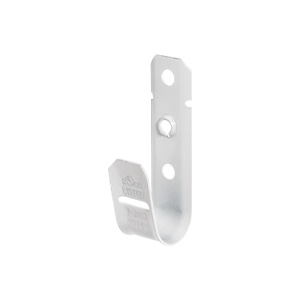

3/4″ J Hook White
3/4″ J Hook, White
Sub-Brand: WJH Series
Part # WJH12WH
UPC: 811443031243
Color-coded cable management solution for data centers, connected buildings, commercial & industrial segmented cable pathway applications
- Features and Benefits
- Application
- Installation
- Cable Capacity
- Specifications
- Resources
- Packaging
- Safety
- Intuitively designed for multiple mounting options to organize and route cables
- Install directly to ceiling or wall using anchor
- Attach to numerous structural attachments using nut and bolt
- Cost-effective alternative compared to using cable tray or ladder rack
- Assists in the identification and organization of pathway applications
- Modern white design aesthetically blends with light-colored open ceilings
- Crafted from heavy-duty pre-galvanized steel
- Smooth rounded edges to provide proper bending radius
- Engineered to provide stress-free installation saving time and money
- Creates a segmented distribution pathway for category cable, PoE, low-voltage, coax, signal & control cable, and innerduct & tubing
- Provides excellent support for CAT3, CAT5e, CAT6, CAT6E, CAT6A and fiber optic cables
- Notched to easily collapse to 90° angle allowing for ceiling mount
- Bendable tab for securing wire
- Complies with NEC and TIA/EIA requirements for structured cabling systems
- UL and CUL listed
Application
Designed for:
- Wire & Cable
- Telcom/Voice Wire
- Network/Structured Category Cable
- PoE Cable
- Optical Fiber Cable
- Low Voltage Wire
- Fire Alarm/Security Cable
- Access Control Cable
- Audio/Video Cable
- Power & Control Cable
- Signal Cable
- Sheathed & Metal-Clad Cable
- Coax
- Broadband
- Satellite
- CCTV
- Cell Signal Boosting
- Duct Systems
- Innerduct
- Tubing
Use in:
- Server Rooms and Data Centers
- Commercial and Office Buildings
- Industrial and Manufacturing
- Warehouses and Distribution Centers
- Food and Beverage
- Retail and Restaurants
- Hospitals and Medical Centers
- Schools and Colleges
- Energy and Renewables
- Mines and Oil Rigs
- Theaters and Concert Venues
- Residential and Multi-Unit Buildings
- Construction Sites
Installation
- Attaches to wall with mounting anchor (not included)
- Ceiling mount to 90° angle with top collapsed
- Attach to any cable positioning hardware or attachment
Cable Capacity
- 16 Cat5e cables
- 10 Cat6 cables
- 6 Cat6A cables
- 5 Cat7 cables
- 16 fiber optic cables
Specifications
- Overall Length (In.): 1.253
- Overall Width (In.): 0.888
- Overall Height (In.): 3.095
- Overall Weight (Lbs.): 0.0565
- Material: Steel
- Finish: Pre-galvanized, Painted
- Color: White
Packaging
- Carton Qty: 100
Safety
- All instructions must be strictly adhered to for a safe, accurate, and effective installation and performance
- Ensure compliance with all governing codes and regulations and those required by the job site
- Never utilize product beyond their intended purpose or in a way that exceeds specified load ratings
- Failure to properly install, use, or apply the product as instructed can result in malfunction, property damage, serious injury, or death, and will void the warranty
- Utilize with industry-standard hardware that meets specified requirements
