16lb 3/4″ Magnetic Locking Gate Cable Manager, White

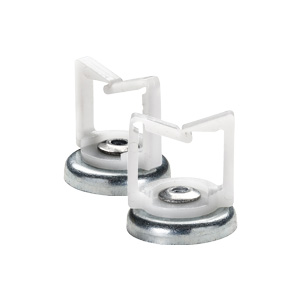

3/4” Magnetic Locking Gate Cable Manager, 16 lb, White, 10 Pack
Product Series: WinnieMAG
Part # WMCH075WH-10
UPC: 811443033025
Color: Silver/White
Amazingly strong and purpose‑built to simplify installs and keep cable routing clean and controlled
- 16lb WinnieMAG Pot Magnet with locking-gate holder ensures secure cable management on ferromagnetic surfaces
- Amazingly strong neodymium rare earth magnet engineered for secure hold on vertical or horizontal ferromagnetic surfaces
- Steel cup focuses the magnetic field toward the fastening surface to increase pull force
- Vertical pull force of up to 16 lbs provides secure adhesion
- Zinc-plated steel cup provides durability and corrosion resistance
- Permanent hold yet easily repositioned to accommodate changing layouts or mounting needs
- Quick, tool-free installation saves time and labor on every setup
- No drilling or adhesives required, preventing damage to finished surfaces
- Locking-gate cradle design securely holds and routes cable
- Allows quick additions or removals for adjustable cable runs
- Retains magnetic strength over service life for dependable, repeatable performance
- Maintains adhesion when exposed to oil, grease, dirt, and extreme temperatures
- Magnet will not interfere with Ethernet or Wi-Fi signals
- Plenum‑rated copolymer plastic holder delivers long‑lasting durability
- Delivers consistent performance across demanding applications and environments
- UL & CUL listed
Patent US D1,029,627 S
Application
Designed for:
- Secure, route and organize wire & cable, cords, conduit and tubing
- Also secures rope, hose, straps, and light-duty pneumatic lines
Use in:
- Cabinets, enclosures, network racks, and workstations
- Entertainment systems and conference rooms
- Digital signage and POS
- Utility vans, trailers, and work trucks
- I-Beams, metal framework and other metal structural elements
- Industrial machines and pumps
- Heavy equipment and agricultural machinery
- Material handling
- Assembly lines and conveyor systems
- Stages and overhead rigs
- Construction sites
- Countless other applications
Installation
- Simply position the magnet onto desired ferromagnetic surfaces
- Snap the locking tab closed to secure the cable or line
- No drilling, adhesives, or specialized tools required
Resources
Library
Datasheet
Standards & Certifications
- UL Listed: E486315 QCRV; evaluated to ANSI/UL 1565
- cUL Listed: E486315 QCRV7; evaluated to CAN/CSA C22.2 No. 18.5
- RoHS compliant
Specifications
- Overall Length (In.): 0.75
- Overall Width (In.): 0.8675
- Overall Height (In.): 0.9655
- Overall Weight (Lbs.): 0.02
Packaging
- Unit Packaging: 100
- Carton Packaging: 10
Safety
- Handle neodymium magnets with care to prevent damage or injury
- Keep magnets away from individuals with pacemakers or other medical implants
- Magnets are not toys; store safely out of reach of children and pets
- Large, powerful magnets can pinch fingers or cause injury — use caution during handling
