SMPTE Hybrid Cable Overview

1. What is SMPTE hybrid cable?

SMPTE hybrid cable is a broadcast‑grade fiber‑and‑copper construction engineered for long‑distance camera‑to‑CCU connectivity. It transports high‑bandwidth video while simultaneously delivering DC power, control, and tally signals through a single unified cable.

Key Construction Elements:

• Single‑mode optical fibers — ultra‑high bandwidth, long‑distance video and return data
• Copper power conductors (20 AWG) — stable DC power delivery to field cameras
• Copper control conductors (24 AWG) — transmit control, tally, and ancillary communication
• Strength member — protects the cable from tension and mechanical stress
• Broadcast‑grade jacket options — portable, riser, plenum, outdoor, armored

2. Where is SMPTE hybrid cable used?

SMPTE hybrid cable is deployed in environments where broadcast cameras require long‑distance connectivity, remote powering, and uncompromised optical performance. It is foundational for modern UHD workflows.

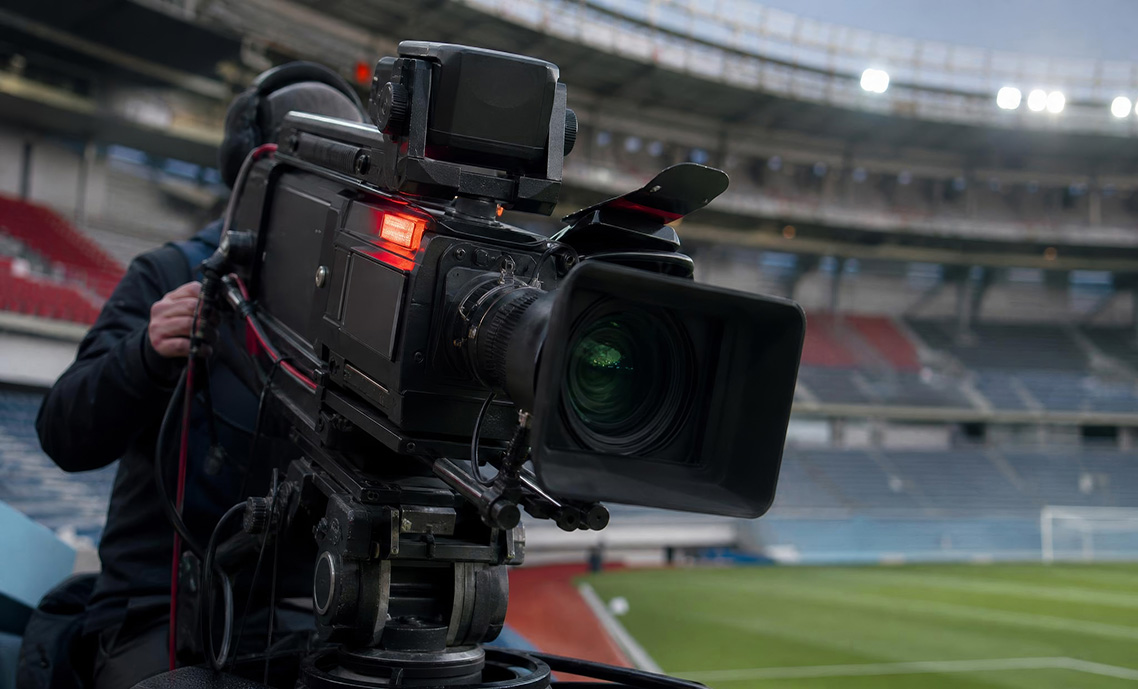

• Stadiums and arenas — long camera positions, multi‑camera layouts
• Golf courses and outdoor event spaces — extended runs across large terrain
• Broadcast studios and production facilities — centralized CCU rooms and structured pathways

3. What jacket types does SMPTE hybrid cable come in?

SMPTE hybrid cable is manufactured in multiple jacket constructions to match installation requirements ranging from mobile field deployment to permanent broadcast infrastructure.

• Portable jacket — flexible, rugged, ideal for mobile camera positions
• Riser jacket — suitable for vertical building pathways
• Plenum jacket — code‑compliant for air‑handling spaces
• Outdoor jacket — UV‑resistant, weather‑resistant for exposed runs
• Armored jacket — crush‑resistant for high‑traffic or harsh environments

4. What is the difference between SMPTE 311 and SMPTE 304?

SMPTE hybrid systems rely on two complementary standards that define the cable and connector interface.

• SMPTE 311M — defines the hybrid fiber‑and‑copper cable construction
• SMPTE 304M — defines the camera/CCU connector interface

5. What signals travel inside a SMPTE hybrid cable?

SMPTE hybrid cable carries all optical and electrical signals required for full‑function broadcast camera operation.

• Two single‑mode fibers — high‑bandwidth video transport and return data
• DC power conductors — supply power from CCU to camera head
• Control/tally pairs — carry communication, tally, and ancillary control signals

6. How far can SMPTE hybrid cable run?

SMPTE hybrid cable supports very long‑distance camera runs, often hundreds or thousands of feet depending on the camera system and CCU. The single‑mode fiber elements maintain optical signal quality over these distances.

• Long‑reach camera‑to‑CCU connectivity — ideal for large venues
• No video degradation — optical integrity maintained over extended runs
• Supports 4K/8K workflows — stable high‑bit‑rate transmission

7. How is SMPTE hybrid cable supported?

SMPTE hybrid cable must be supported using hardware that prevents fiber stress, maintains proper bend radius, and protects the cable during both permanent installation and mobile broadcast deployment.

• J hooks — primary support for long broadcast runs; maintain cable shape and prevent compression
• Saddled bridle rings — controlled support for fiber‑based bundles without pinching or deformation
• Magnetic cable managers — ideal for temporary camera positions, fast rigging, and steel‑structure routing
• Cable tray — structured horizontal pathways for multi‑camera infrastructure
• Ladder rack — overhead support in studios, control rooms, and production facilities

Avoid: sharp bends, unsupported spans, pinch points.

8. What bend radius should be maintained?

SMPTE hybrid cable requires a controlled bend radius to protect the single‑mode fibers and prevent optical loss. Bend‑radius violations can cause attenuation, fiber stress, or long‑term damage.

• Maintain smooth, gentle curves during routing
• Avoid tight bends during pulls or dressing
• Follow manufacturer minimum bend‑radius specifications
• Prevent compression points or sharp corners

9. What is the difference between SMPTE hybrid and opticalCON?

SMPTE hybrid and opticalCON serve different roles in broadcast infrastructure.

• SMPTE hybrid — fiber + DC power + control/tally
• opticalCON — fiber only (no power, no control)

SMPTE hybrid powers the camera and carries control signals. opticalCON is used for pure optical transport and cannot replace SMPTE hybrid for full‑function broadcast camera operation.

10. Is SMPTE hybrid used for security cameras?

No. SMPTE hybrid cable is engineered specifically for professional broadcast camera systems that require long‑distance fiber‑based video transport and remote powering. Security cameras rely on low‑voltage copper, PoE, or fiber‑only links depending on the system design. Because SMPTE hybrid includes camera‑power conductors and broadcast‑specific control pairs, it is incompatible with typical surveillance architectures and is not used in security installations.
