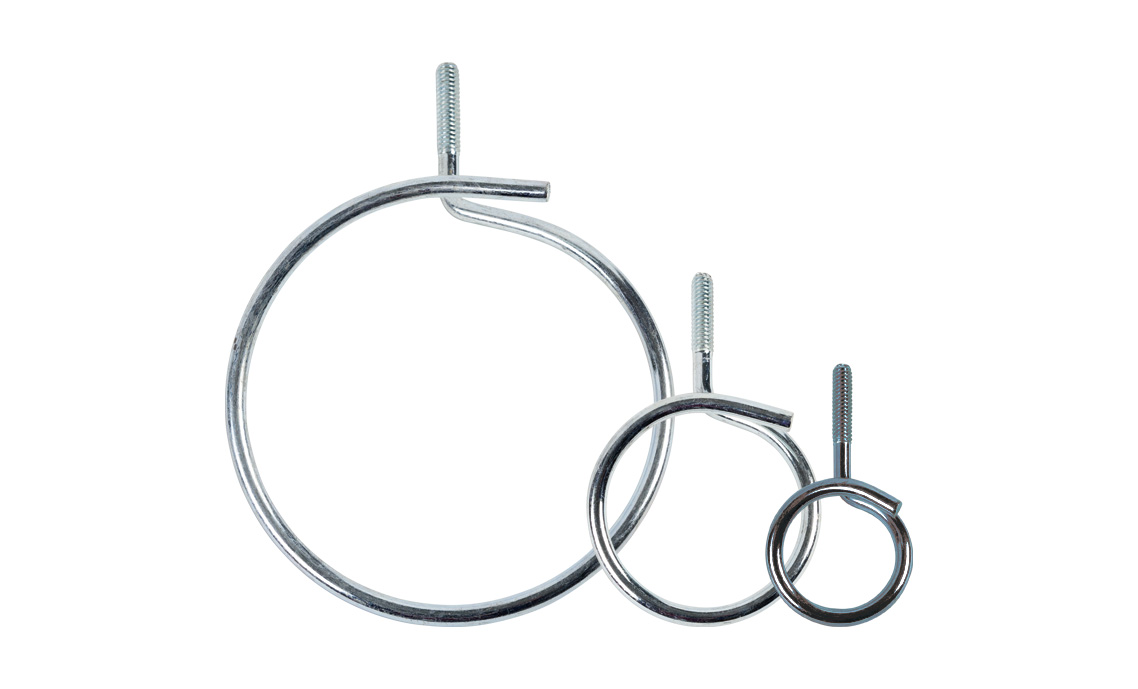

WBR Series Bridle Ring System

Effortless Cable Management Starts Here

Winnie Industries WBR Series Bridle Ring System provides a quality, comprehensive but yet value-driven, non-continuous support solution for commercial, industrial and residential cable pathway applications. The versatile cabling fastening system provides support for category cable, PoE, fire alarm cable, low-voltage cable, fiber optic cable, signal, and control cable. Our products are engineered and manufactured to make installs easier for datacom, electrical, security, mechanical, and HVAC contractors.

The WBR Series provides reliable support for cabling infrastructure, ensuring continuous 24/7 connectivity for networks, communications, fire safety, monitoring, and control systems

Features

Fully Versatile Bridle Ring System

10-plus mounting configurations

Great Durability

Crafted from heavy-duty pre-galvanized steel

Designed for Adaptability

Create customized vertical and/or horizontal cable pathways

Easy Identification

Offered in five bold colors, including life safety red, to facilitate organized wire and cable pathway identification

Save Install Time & Labor Cost

No assembly required—every configuration is ready for installation straight from the box

UL and CUL Listed

Meets safety and reliability standards for supporting cables under 600V

Mounting Applications

Cable to Strut
Cable to Wood/Concrete/Steel Deck
Cable to Threaded Rod & Wire
Cable to I-Beam
Specialty Bridle Rings

All Bridle Rings

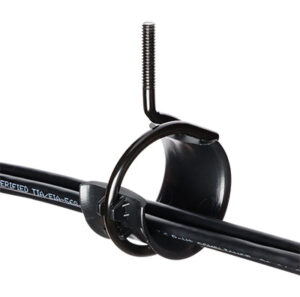

2″ Bridle Ring with Saddle, 1.5″ Stem, All Black

Cable to Strut or Attachment

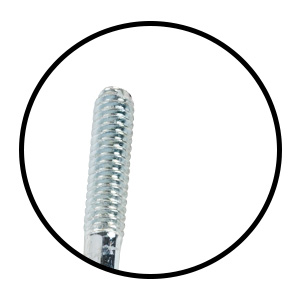

Bridle Ring for Strut or Attachment

Install directly to strut using channel nut or attach to structural attachment

Cable to Wood/Concrete/Steel Deck

Bridle Ring for Concrete

Install directly to concrete using masonry anchor

Bridle Ring for Wood

Install directly into wood ceilings or walls

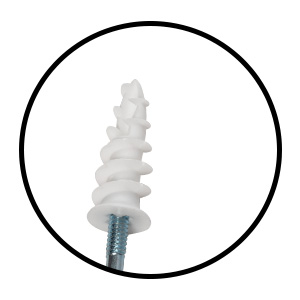

Bridle Ring for Drywall

Install directly onto drywall

Bridle Ring for Wall or Ceiling

Install directly to ceiling or overhead structure using mounting anchor or 1/4″ to threaded rod

Bridle Ring for Concrete or Steel

Install directly to concrete, masonry, steel or composite metal decking using powder actuated or single-shot gas gun

Magnetic Bridle Ring for Overhead or Wall Mount

Install directly to steel beams, metal joists, and other ferromagnetic surfaces; can be reused and repositioned for ultimate flexibility; 360° rotation allows cable to run in any direction

Cable to Threaded Rod & Wire

J Hook with Multi-Functional Clip

Installs to 12-gauge wire (pencil rod) or threaded rod up to 5/8″ in diameter

Cable to I-Beam

Bridle Ring with Spring Steel Beam Clamp

Secures to beam flange up to 1/2″ thick; bottom or side mount

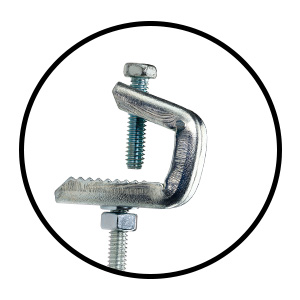

Bridle Ring with Pressed Beam Clamp

Secures to beam flange up to 1/2″ thick; bottom or side mount

Bridle Ring with Malleable Beam Clamp

Secures to beam flange up to 3/4″ thick; bottom or side mount

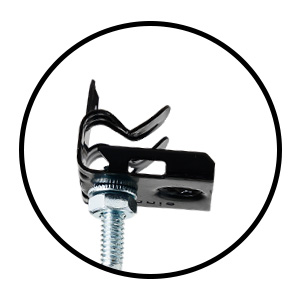

Bridle Ring with Hammer On Beam Clamp

Secures to beam flange up to 1/2″ thick

Specialty Bridle Rings

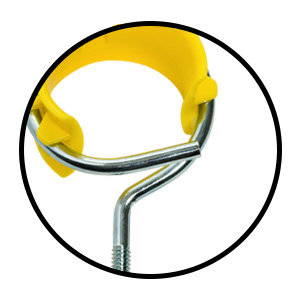

Bridle Ring with Saddle for Wall, Ceiling, Attachment or Beam

Plenum-rated saddled bridle ring ensures an ideal bending radius for high-performance copper and fiber cable. Available in standard, sleek all-black, and modern all-white finishes; install directly to ceiling or wall using mounting anchor or attach to structural attachment

Painted Bridle Ring for Wall, Ceiling, Attachment or Beam

Fully-painted, color-coded cable support solution, no stickers, no colored clips to fall off. Easily segment and identify cable pathway applications; install directly to ceiling or wall using mounting anchor or attach to structural attachment

316 Stainless Steel Bridle Ring for Wall, Ceiling or Attachment

Corrosion-resistant cable support solution for the harshest of environments. Resists rust and high temperatures and solutions of sulfuric acid, chlorides, bromides, iodides and fatty acids; install directly to ceiling or wall using mounting anchor or attach to structural attachment

Applications

Effectively supports the distribution of:

Wire & Cable
- - Telcom/Voice Wire
  - Network/Data Category Cable
  - PoE Cable
  - Low-Voltage Cable
  - Fire Alarm/Security Cable
  - Access Control Cable
  - Audio/Video Cable
  - Speaker Cable
  - Paging Cable
  - Nurse Call Cable
  - Signal & Control Tray Cable
Coax
- - Broadband
  - Satellite
  - CCTV

Use in:

Server Rooms and Data Centers
Commercial and Office Buildings
Industrial and Manufacturing
Warehouses and Distribution Centers
Food and Beverage
Restaurants and Bars
Retail and Convenience Stores
Hospitality and Convention Centers
Hospitals and Medical Centers
Schools and Colleges
Energy and Renewables
Mines and Oil Rigs
Theaters and Concert Venues
Residential and Multi-Unit Buildings
Construction Sites

Standards & Certifications

UL Listed

All cULus Listed products meet the following UL standards: UL1565, UL2239

Please note not all items are cULus Listed.
